No-Hub Couplings
Engineered to connect no-hub cast iron pipe.
Choose the No-Hub Coupling with the patented shield design that provides maximum transfer of pressure from the clamps - to the gasket - to the pipe. Engineered to connect no-hub cast iron pipe in applications replacing the less-efficient hub and spigot.
Features
- Patented Bi-Directional Shield Design
The shield will adjust to variations in diameters and circumferences of the pipes being joined, thereby eliminating leak paths. The patented, bi-directional corrugations exert sealing pressure in both parallel and transverse patterns on the gasket and pipe, providing a positive, reliable seal. - Specially Beaded Gasket
Made of an elastomeric compound that meets the requirements of ASTM C564 and features a series of strategically positioned grooves and beads. When tightened, the shield mates with these grooves and beads to exert exceptional sealing pressure and holding power to prevent "pull out" failures. - Interlocking Clamp Design
The clamps feature a one-piece screw housing that mechanically interlocks the housing to the band. This one-piece housing design eliminates leak paths that can occur in staked or welded clamps. - Floating Eyelet Design
Floating eyelets fasten the clamps to the shield, allowing the clamp band and shield to move independently. This freedom prevents the shield from crimping during tightening, which can lead to leakage later on.
Specifications

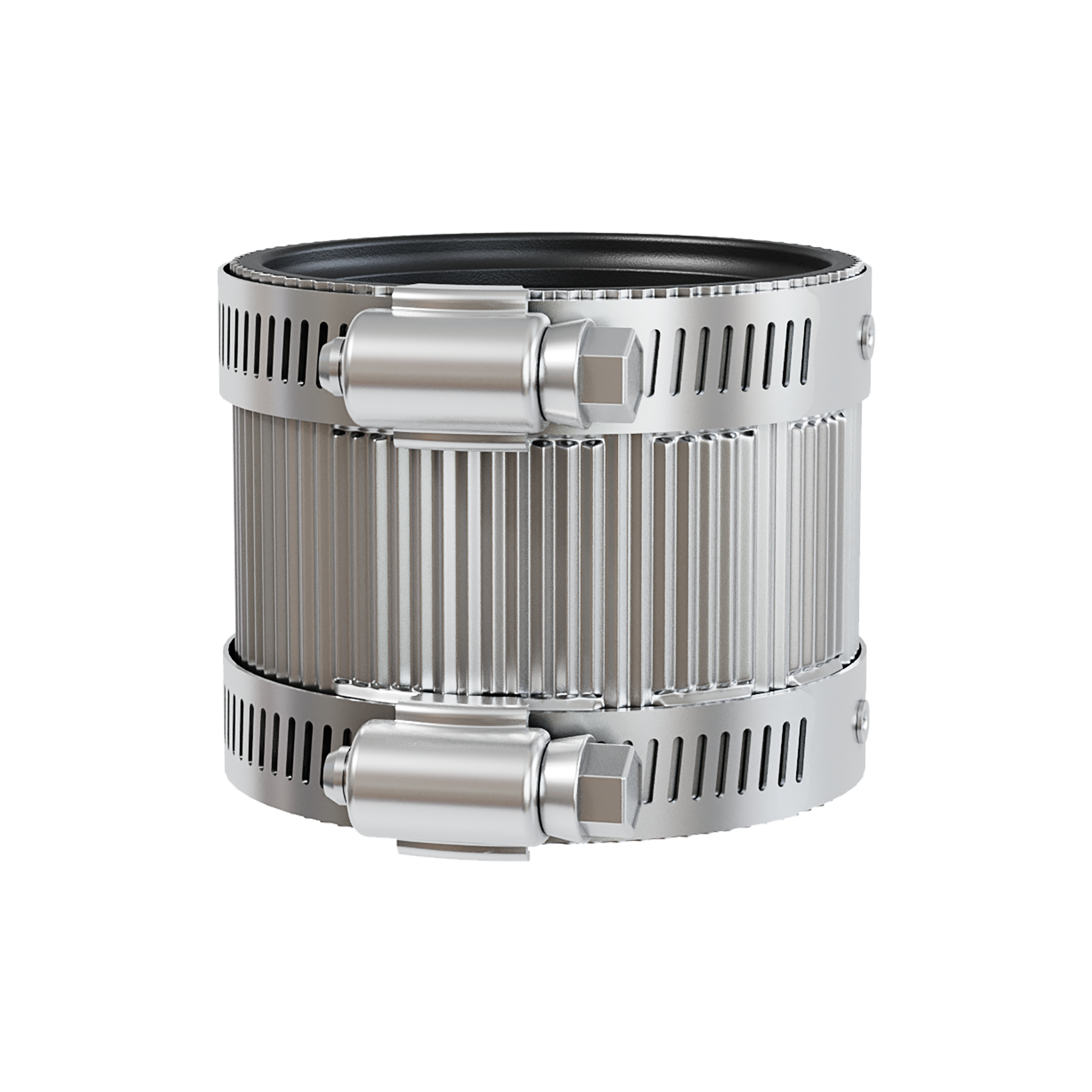

Standard No-Hub
- 5/16" hex-head screw applies 60 in.-lbs. of installation torque to the band/shield assembly.
- Standard No-Hub Couplings conform to CISPI 310. Couplings comply with ASTM C 1277. Gaskets are made from an elastomeric compound that meets the requirements of ASTM C 564.
Medium Duty No-Hub

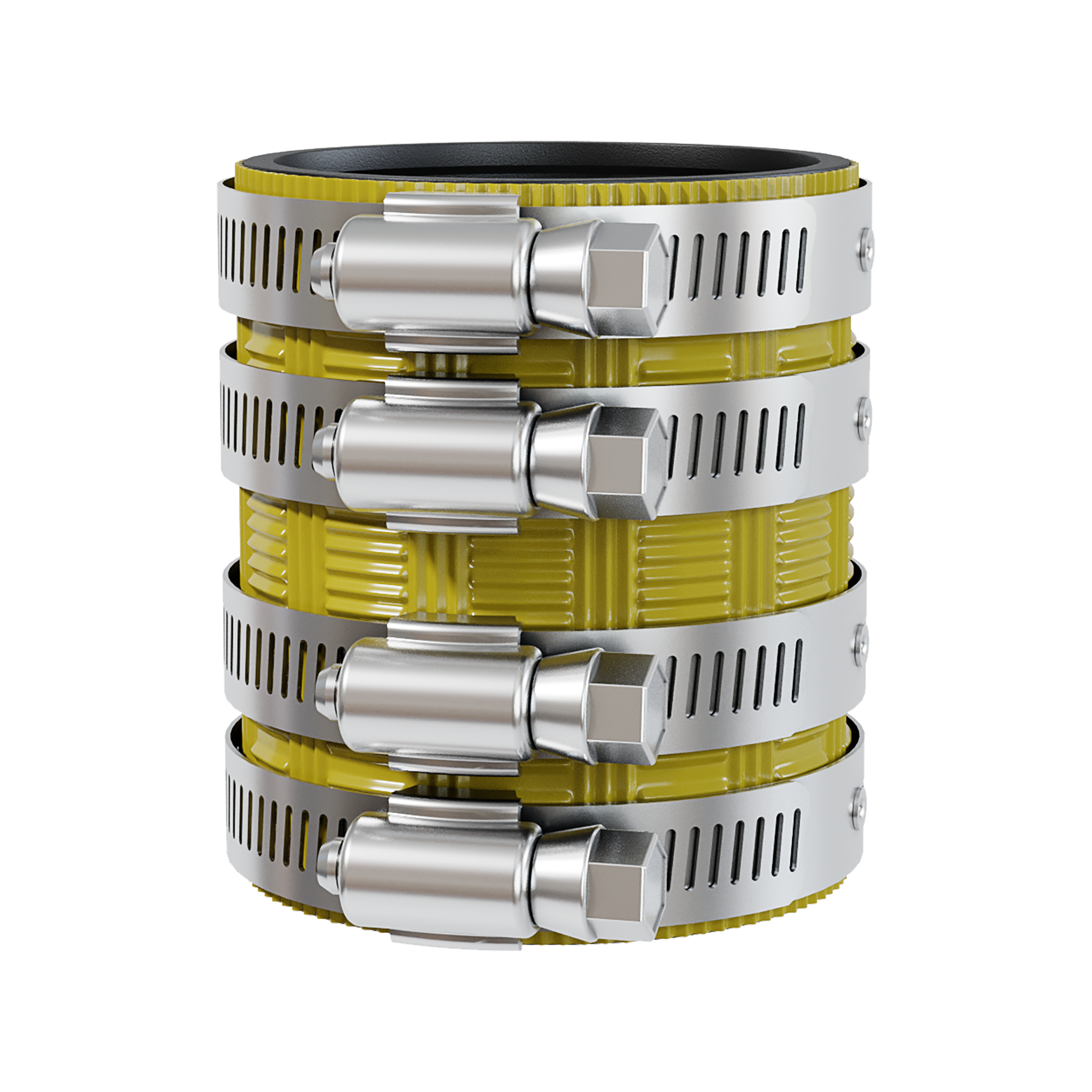

- The distinctive yellow shield quickly identifies the Heavy-Duty MD Couplings and makes it
easier for inspectors. 5/16" hex-head screw applies 80 in.-lbs. of installation torque to the
band/shield assembly.
- Couplings conform to CISPI 310, Factory Mutual CN 1680. Couplings comply with ASTM C564, ASTM C1540, IAPMO file #3198, Commonwealth of Massachusetts CMR-248 and City of New York MEA 253-98-E. Gaskets are made from an elastomeric compound that meets the requirements of ASTM C564.
Heavy Duty No-Hub

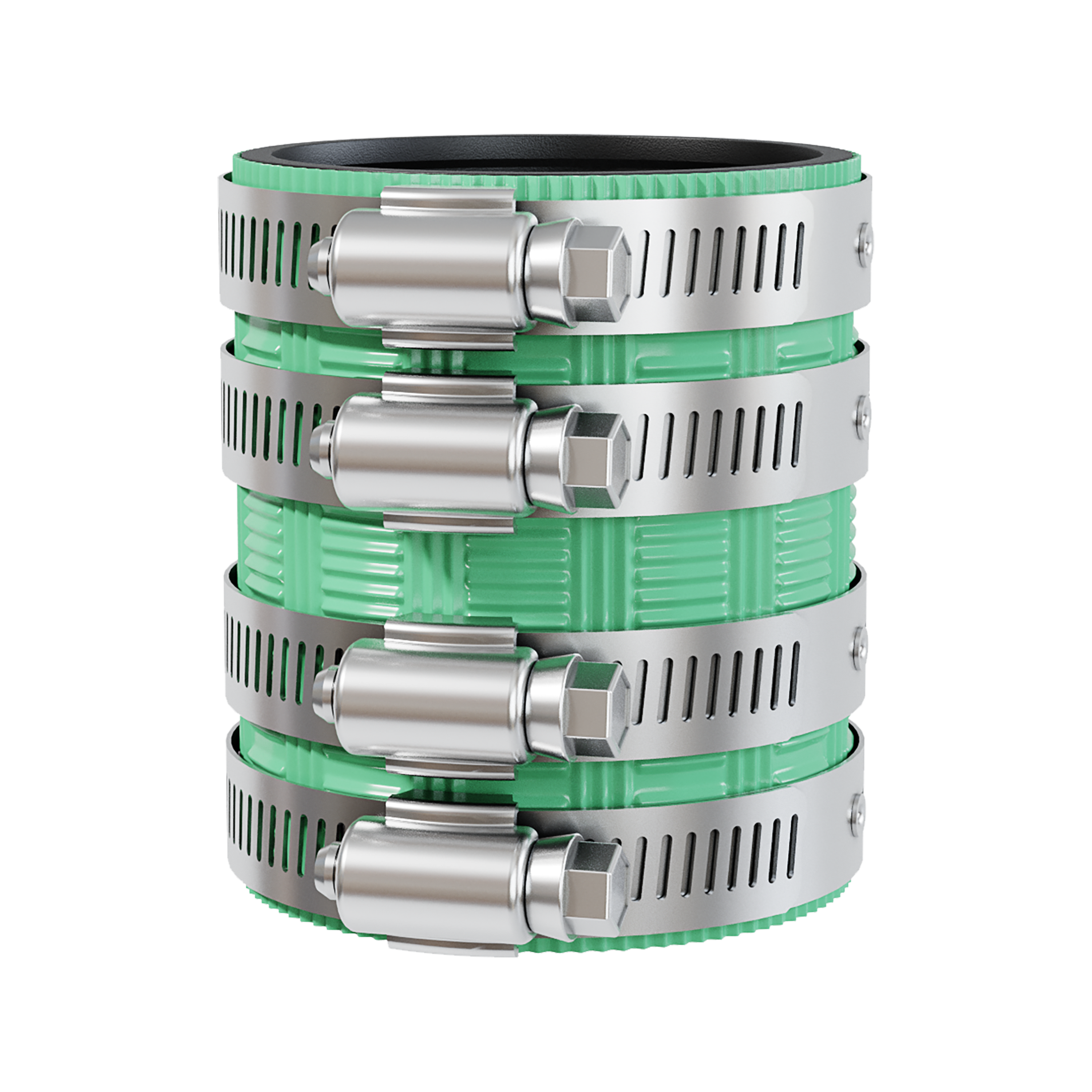

- The distinctive green shield quickly identifies the Heavy-Duty HD Couplings and makes it easier for inspectors. 3/8" hex-head screw applies 80 in.-lbs. of installation torque to the band/shield assembly. Boasts an ultimate torque rating exceeding 100 in.-lbs. and heavier gauge stainless steel.
- Couplings conform to CISPI 310, Factory Mutual EN 1680. Couplings comply with ASTM C564, ASTM 1277, IAPMO file #3198, Commonwealth of Massachusetts CMR-248 and City of New York MEA 253-98-E. Gaskets are made from an elastomeric compound that meets the requirements of ASTM C564
- Maximum test pressure: 4.3 PSI (29.6KPA)
- For More Information visit: http://www.stant.com/no-hub/sellsheet.cfm
Models
| Part No. | Size | Clamps Per Coupling | Install Torque (Inch Pounds) | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Standard Duty N0-Hub | |||||||||
| NH-150 | 1-1/2" | 2 | 60 | ||||||
| NH-22 | 2" | 2 | 60 | ||||||
| NH-33 | 3" | 2 | 60 | ||||||
| NH-44 | 4" | 2 | 60 | ||||||
| NH-55 | 5" | 4 | 60 | ||||||
| NH-66 | 6" | 4 | 60 | ||||||
| NH-88 | 8" | 4 | 60 | ||||||
| NH-1010 | 10" | 4 | 60 | ||||||
| NH-1212 | 12" | 6 | 120 | ||||||
| NH-1515 | 15" | 6 | 120 | ||||||
| Reducing Size No-Hub | |||||||||
| NH-215 | 2"x1-1/2" | 2 | 60 | ||||||
| NH-32 | 3"x2" | 2 | 60 | ||||||
| NH-42 | 4"x2" | 2 | 60 | ||||||
| NH-43 | 4"x3" | 2 | 60 | ||||||
| Medium Duty No-Hub | |||||||||
| MD-150 | 1-1/2" | 4 | 80 | ||||||
| MD-22 | 2" | 4 | 80 | ||||||
| MD-33 | 3" | 4 | 80 | ||||||
| MD-44 | 4" | 4 | 80 | ||||||
| MD-55 | 5" | 6 | 80 | ||||||
| MD-66 | 6" | 6 | 80 | ||||||
| MD-88 | 8" | 6 | 80 | ||||||
| MD-1010 | 10" | 6 | 80 | ||||||
| HD-150 | 1-1/2" | 4 | 80 | ||||||
| Heavy Duty No-Hub | |||||||||
| HD-22 | 2" | 4 | 80 | ||||||
| HD-33 | 3" | 4 | 80 | ||||||
| HD-44 | 4" | 4 | 80 | ||||||
| HD-55 | 5" | 6 | 80 | ||||||
| HD-66 | 6" | 6 | 80 | ||||||
| HD-88 | 8" | 6 | 80 | ||||||
| HD-1010 | 10" | 6 | 80 | ||||||
Maximum Test Pressure: 4.3 PSI (29.6 KPA)
Maximum Operating Temperature: 140° F nonconsistent
Maximum Operating Temperature: 140° F nonconsistent
Accessories
- 5/16" Ratchet Torque Wrench - TW100
Built-in reversing lever is preset to 60" lbs. torque. Recommended for Fernco Couplings and other banded Fernco products. Chrome plated shank, with all metal construction. - 5/16" Ratchet Torque Wrench - TW200
With finger grip reversing collar that is preset to 60" lbs. torque. Recommended for Fernco Couplings and other banded Fernco products. Chrome plated shank, with all metal construction.
