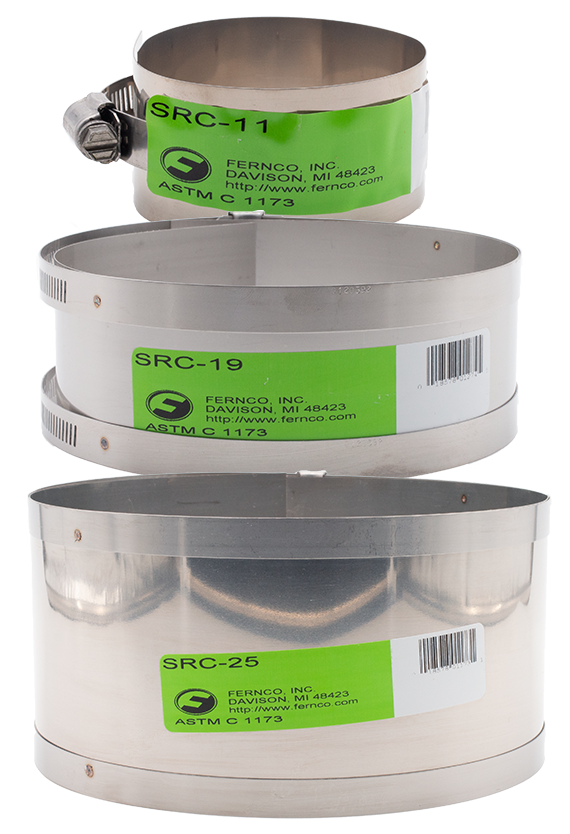

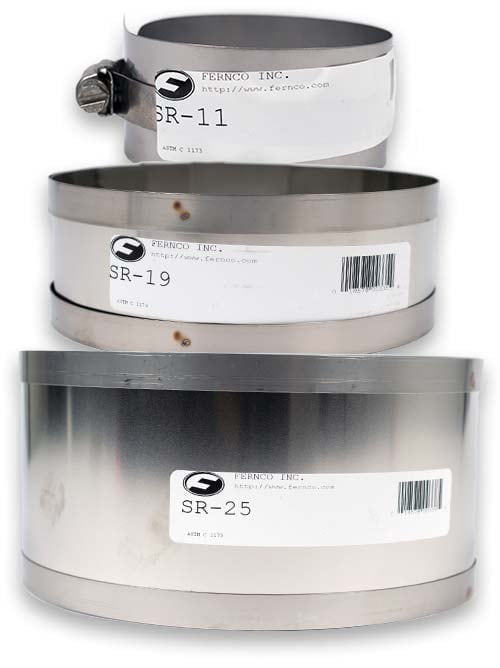

Stainless Steel Shear Rings

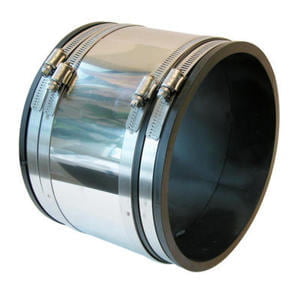

Add extra strength to just about any size Fernco coupling.
Fernco’s stainless steel shear rings are easy to attach and help maintain proper alignment even the most unstable ground conditions. Bushings are supplied separately for material transition and size reduction.
Features
- Designed to fit:
- 1001 - Clay to Clay
- 1055 - AC to AC
- 1004 - Concrete to Concrete
- 1056 - Cl/Plastic to Cl/Plastic
- 1001 - Clay to Clay
- Available in sizes 1-1/2" to 15" couplings. Custom sizes are available.
Specifications
- Series 300 stainless steel bands, nuts, and housings
- Maximum test pressure: 4.3 PSI (29.6KPA)
- Maximum operating temperature: 140° F nonconsistent
Models
| Part No. | Fits Fernco Coupling No. | Length | Width | Band Size |
|---|---|---|---|---|
| SR-9 | 1056-150 | 9” | 1.5” | 32 |
| SR-11 | 1056-22 | 11” | 1.5” | 44 |
| SR-15 | 1056-33 | 15” | 2” | 64 |
| SR-19 | 1056-44, 1055-44 | 19” | 2” | 88 |
| SR-22 | 1001-44, 1004-44, 1056-55 | 22” | 2” | 96 |
| SR-25 | 1056-66 | 25” | 4” | 116 |
| SR-27 | 1001-66, 1055-66 | 27” | 4” | 128 |
| SR-28 | 1004-66 | 28” | 4” | 140 |
| SR-33 | 1056-88 | 33” | 4” | 152 |
| SR-35 | 1001-88, 1055-88 | 35” | 4” | 164 |
| SR-37 | 1004-88 | 37” | 4” | 184 |
| SR-39 | 1055-1010, 1056-1010 | 39” | 4” | 184 |
| SR-46 | 1001-1010, 1004-1010, 1051-1212, 1055-1212, 1056-1212 | 46” | 4” | (2) 116 |
| SR-54 | 1001-1212, 1004-1212, 1056-1515 | 54” | 4” | (2) 128 |
| SR-59 | 1001-1515 | 59” | 4” | (2) 152 |
| SR-63 | 1056-1818 | 63” | 4” | 164 & 152 |
| SR-73 | 1056-2121 | 73” | 4” | (2) 184 |
* Supplied with reducer.
Maximum Test Pressure: 4.3 PSI (29.6 KPA)
Maximum Operating Temperature: 140° F nonconsistent
Maximum Test Pressure: 4.3 PSI (29.6 KPA)
Maximum Operating Temperature: 140° F nonconsistent
Accessories
- 5/16" Ratchet Torque Wrench - TW100
Built-in reversing lever is preset to 60" lbs. torque. Recommended for Fernco Couplings and other banded Fernco products. Chrome plated shank, with all metal construction. - 5/16" Ratchet Torque Wrench - TW200
With finger grip reversing collar that is preset to 60” lbs. torque. Recommended for Fernco Couplings and other banded Fernco products. Chrome plated shank, with all metal construction.
