Stock Couplings

Fernco manufacturers the most complete line of flexible couplings in the industry, from sizes of 3/4" to 27” (19mm to 381mm).

Because Fernco Couplings have earned a reputation for consistent, superior performance, you can have full confidence in their quality and reliability.

The dimensional flexibility of Fernco couplings ensures leak-proof seals on virtually any pipe material: plastic, cast iron, asbestos cement, clay, concrete, steel, copper and ductile iron. All couplings are clearly marked with part number, size, and pipe materials that the coupling will connect. Fernco makes fast delivery of stock items with no minimum order required. For special applications, our custom design service can supply couplings to individual customer requirements.

Features

Made of an elastomeric compound that meets the requirements of ASTM #D5926, C1173 and applicable portions of ASTM #C443, C425, C564, CSA B602 and D1869
Leak-proof, root-proof and are resistant to chemicals, ultraviolet rays, fungus growth, and normal sewer gases
Stainless steel clamps are corrosion-resistant and rust-proof

Specifications

Maximum test pressure: 4.3 PSI (29.6KPA)
Maximum operating temperature: 140º F non-consistent

Models

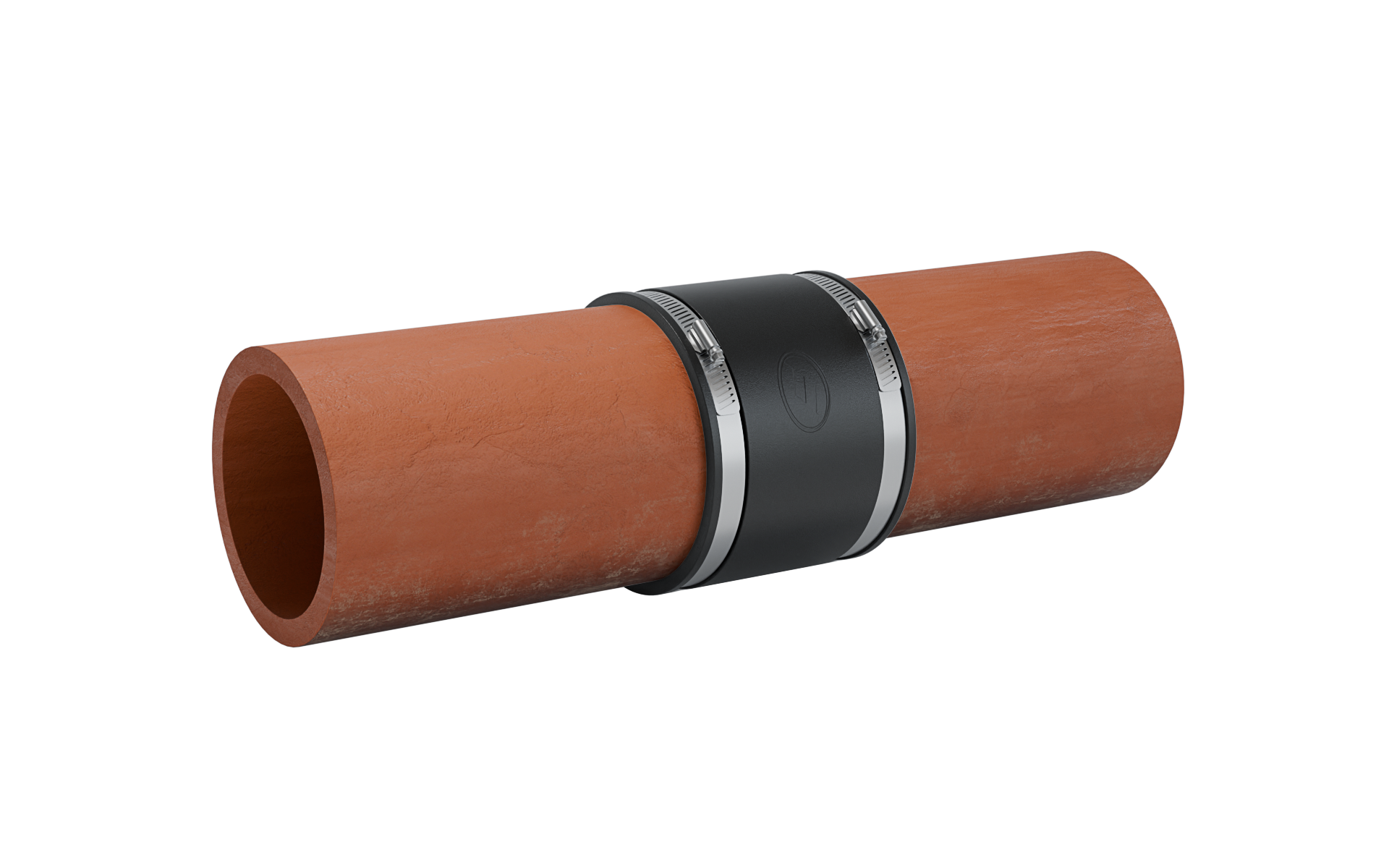

Connecting 1001 Series - Clay to Clay

1001-SERIES - Clay to Clay

Part No.	Side A		Side B		Width C
	inches	mm	inches	mm	inches	mm
1001-44	5.29	134	5.29	134	4.10	104
1001-44WC	5.51	139.95	5.51	139.95	3.97	100.84
1001-44WCRC	5.51	139.95	5.51	139.95	3.97	100.84
1001-54	6.05	154	5.54	141	5.00	127
1001-55	6.48	165	6.48	165	5.97	152
1001-64	7.50	191	5.50	140	6.02	153
1001-64WC	8.00	203.20	5.50	139.70	6.00	152.40
1001-65	7.35	187	6.61	168	5.76	146
1001-66	7.50	191	7.50	191	6.00	152
1001-66WC	8.01	203.45	8.01	203.45	5.91	150.14
1001-66WCRC	8.00	203.20	8.00	203.20	6.00	152.40
1001-86WC	9.96	252.98	7.80	198.12	5.93	150.62
1001-86	9.50	241	7.13	181	5.68	144
1001-88WC	9.96	252.98	9.96	252.98	5.93	150.50
1001-88WCRC	10.00	254.00	10.00	254.00	6.00	152.40
1001-1010WC	12.40	314.96	12.40	314.96	5.90	149.86
1001-1010WCRC	12.40	314.96	12.40	314.96	5.90	149.86
1001-1212WC	15.25	387.35	15.25	387.35	6.42	163.07
1001-1212WCRC	15.25	387.35	15.25	387.35	6.42	163.07
1001-88	9.65	245	9.65	245	6.00	152
*1001-10-8	12.50	318	9.65	245	6.13	156
1001-1010	12.40	315	12.40	315	6.00	152
1001-1210	14.50	368	12.50	318	6.37	162
1001-1212	14.51	369	14.51	369	6.00	152
*1001-1512	18.14	461	14.38	365	6.85	174
1001-1515	18.14	461	18.14	461	9.89	251
1001-1818	21.90	556	21.90	556	9.63	245
1001-2121	25.40	645	25.40	645	9.89	251
1001-2124	28.97	736	28.97	736	9.89	251
1001-2727	32.40	823	32.40	823	9.89	251

* Supplied with reducer.
Maximum Test Pressure: 4.3 PSI (29.6 KPA)
Maximum Operating Temperature: 140° F nonconsistent

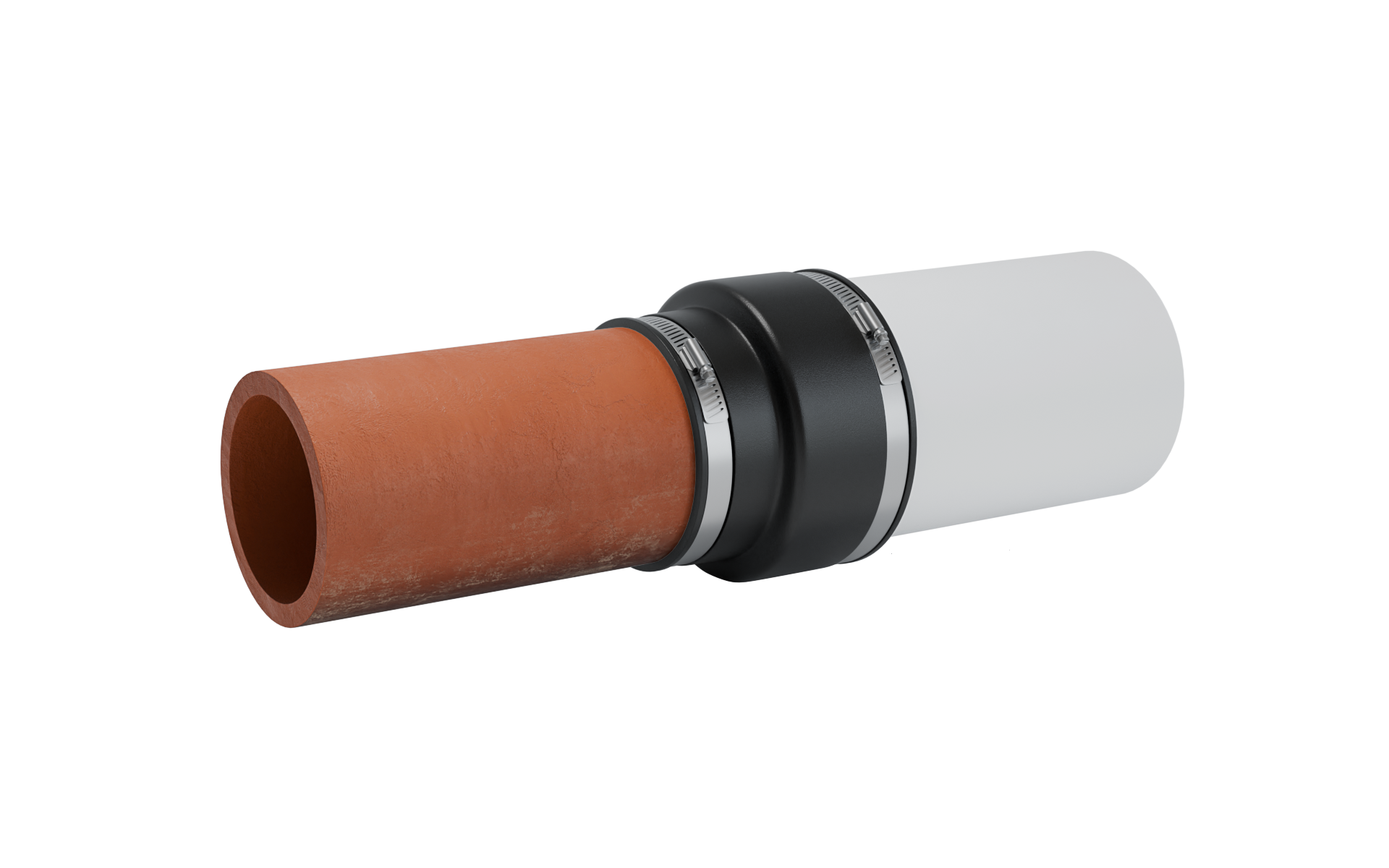

Connecting 1002 Series - Clay to Cast Iron or Plastic

1002 Series - Clay to Cast Iron or Plastic

Part No.	Side A		Side B		Width C
	inches	mm	inches	mm	inches	mm
1002-43	5.25	133	3.38	86	3.91	99
1002-43WC	5.40	137.16	3.50	88.90	4.00	101.60
1002-44WC	5.40	137.16	4.56	115.82	4.00	101.60
1002-44WCRC	5.44	138.18	4.55	115.57	3.96	100.58
1002-46WCRC	5.50	139.70	6.60	167.64	5.74	145.80
1002-54WC	6.84	173.80	4.29	109.08	5.93	150.72
1002-55WC	6.81	172.91	5.17	131.32	5.81	147.59
1002-64WC	8.00	203.20	4.50	114.30	6.00	152.40
1002-64WCRC	8.02	203.71	4.57	116.08	6.00	152.40
1002-64WCRC-SDR	8.00	203.20	4.38	111.25	6.00	152.40
1002-66WC	8.00	203.20	6.66	169.16	6.00	152.40
1002-66WCRC	8.04	204.10	6.38	162.14	5.91	150.01
1002-86WC	10.00	254.00	6.38	162.05	6.00	152.40
1002-88WC	10.00	254.00	8.66	219.96	6.00	152.40
1002-88WCRC	10.00	254.00	8.66	219.96	6.00	152.40
1002-1010WC	12.60	320.04	10.60	269.24	6.37	161.76
1002-1010WCRC	12.40	314.96	10.60	269.24	5.90	149.86
1002-44	5.14	131	4.52	115	3.96	101
1002-46	5.18	132	6.39	162	5.82	148
1002-54	6.05	154	4.38	111	5.28	134
1002-64	7.34	186	4.29	109	5.56	141
1002-65	7.12	181	5.25	133	5.68	144
1002-66	7.35	187	6.61	168	5.76	146
1002-86	9.33	237	6.20	157	5.93	151
1002-88	9.63	245	8.43	214	5.74	146
1002-10-8	12.50	318	8.50	216	6.13	156
1002-1010	12.50	318	10.50	267	5.88	149
1002-1210	14.50	368	10.75	273	6.60	168
1002-1212	14.50	368	12.50	318	6.37	162
1002-1212WC	16.29	413.64	12.39	314.60	6.30	160.10
1002-1212WCRC	15.25	387.35	12.60	320.04	6.42	163.07
1002-1512	18.14	461	12.60	320	6.85	174
1002-1515	18.14	461	15.60	396	6.85	174
1002-1515WC	19.82	503.43	15.43	391.92	9.68	245.95
1002-1818 *	21.90	556	18.88	480	9.63	245
1002-1818WC	22.59	573.79	18.90	480.06	9.89	251.29
1002-2121 *	25.40	645	22.30	566	10.14	258
1002-2424 *	28.97	736	25.00	635	10.14	258
1002-2727 *	32.40	823	28.20	716	10.14	258

* Supplied with reducer.
Maximum Test Pressure: 4.3 PSI (29.6 KPA)
Maximum Operating Temperature: 140° F nonconsistent

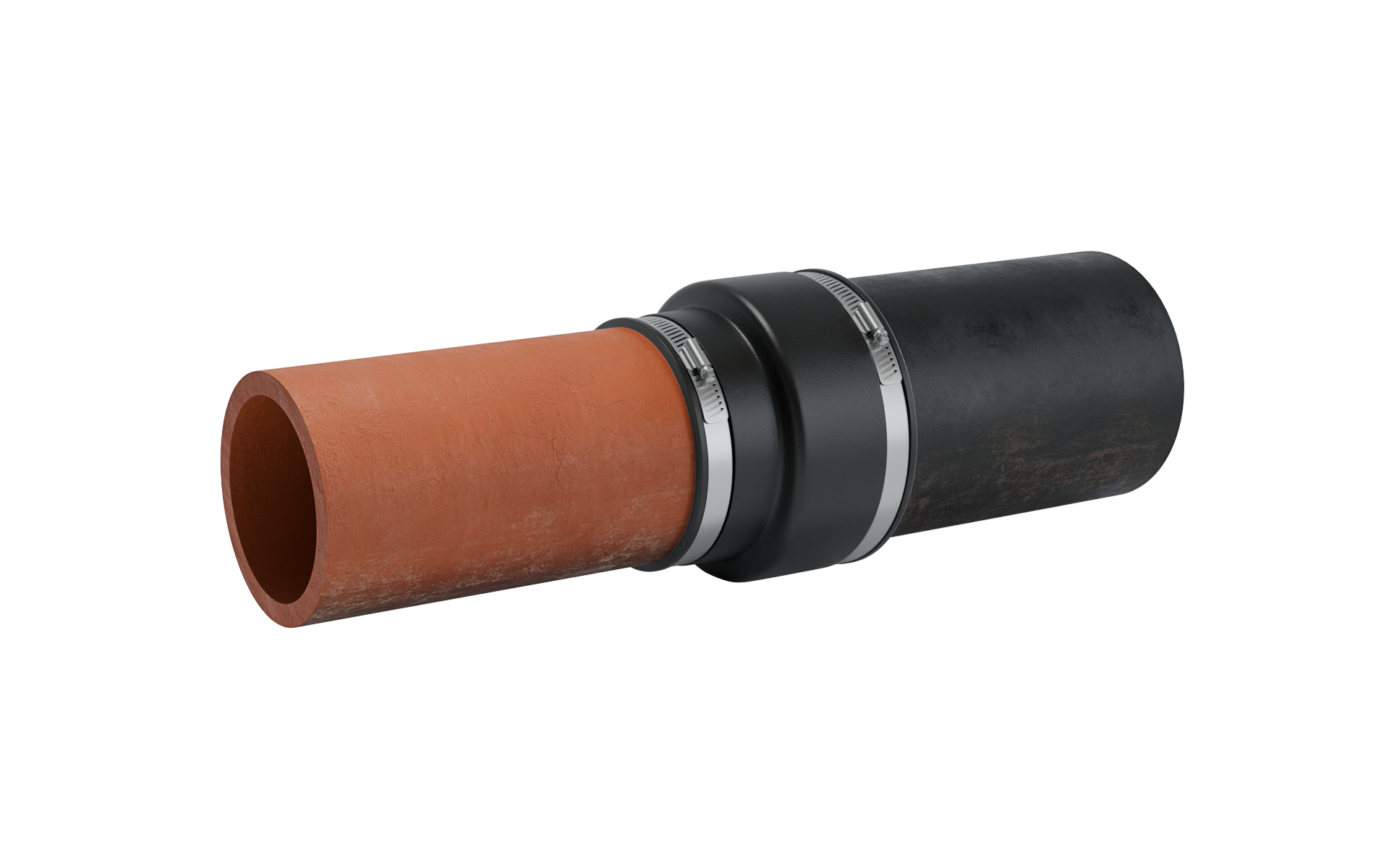

Connecting 1003 Series - Clay to Asbestos Cement Fibre or Ductile Iron

1003 SERIES - Clay to Asbestos Cement Fibre or Ductile Iron

Part No.	Side A		Side B		Width C
	inches	mm	inches	mm	inches	mm
1003-44	5.39	137	4.89	124	3.92	100
1003-46	5.17	173	6.81	173	5.81	148
1003-54 *	6.05	154	5.00	127	5.28	134
1003-55	6.00	152	5.86	149	4.91	125
1003-64 *	7.12	181	5.25	133	5.68	144
1003-64WC	8.01	203.45	5.00	127.00	5.95	151.13
1003-65 *	7.35	187	5.90	150	6.00	152
1003-66	7.31	186	6.99	178	5.92	150
1003-66WC	8.01	203.45	6.80	172.72	5.95	151.13
1003-66WCRC	8.00	203.20	6.90	175.26	6.00	152.40
1003-85 *	9.33	237	5.90	150	6.18	157
1003-86 *	9.63	245	7.20	183	5.99	152
1003-86WC	10.00	254.00	7.20	182.88	6.00	152.40
1003-88	9.50	241	9.00	229	5.99	152
1003-88WC	9.96	252.98	9.05	229.87	5.93	150.62
1003-8-10	11.05	281	9.65	245	5.95	151
1003-10-8 *	12.50	318	9.05	230	6.13	156
1003-1010 *	12.40	315	11.12	282	6.25	159
1003-1010WC	12.40	314.96	11.12	282.45	6.00	152.40
1003-1210 *	14.50	368	11.12	282	6.62	168
1003-1212	15.00	381	13.29	337	5.76	146
1003-1212WC	15.25	387.35	13.20	335.28	6.42	163.07
1003-1512 *	18.14	461	13.20	335	6.85	174
1003-1516	18.10	460	17.80	452	9.89	251
1003-1818 *	21.60	549	19.50	495	9.89	251

* Supplied with reducer.
Maximum Test Pressure: 4.3 PSI (29.6 KPA)
Maximum Operating Temperature: 140° F nonconsistent

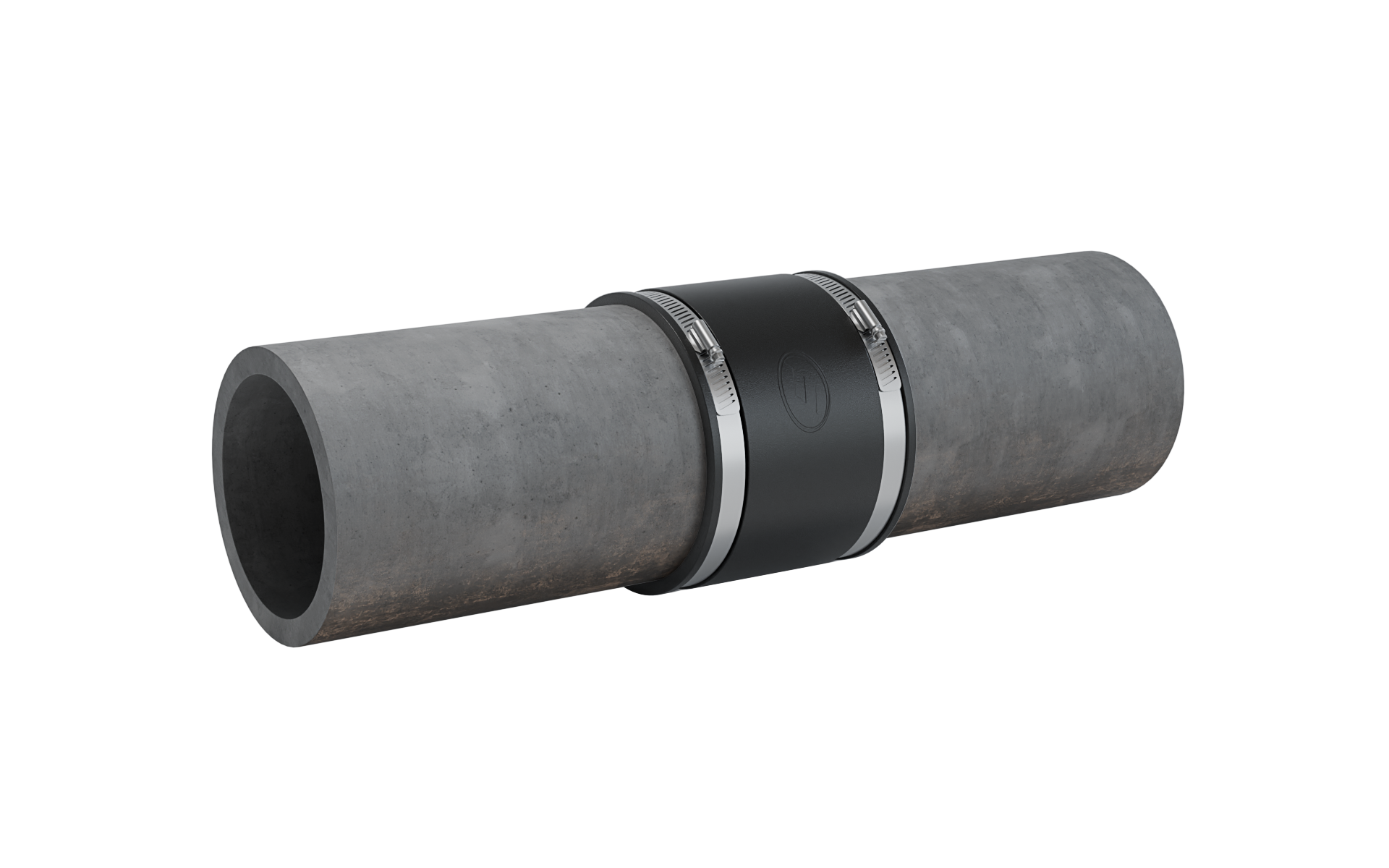

Connecting 1004 Series - Concrete to Concrete

1004 SERIES - Concrete to Concrete

Part No.	Side A		Side B		Width C
	inches	mm	inches	mm	inches	mm
1004-44	5.51	140	5.51	140	3.97	101
1004-64 *	7.67	195	5.62	143	5.86	149
1004-66	7.58	193	7.58	193	5.94	151
1004-86 *	10.25	260	7.80	198	6.18	157
1004-88	10.38	264	10.38	264	5.90	150
1004-10-8 *	12.50	318	10.65	271	6.37	162
1004-1010	12.40	315	12.40	315	6.00	152
1004-1210	15.38	391	12.60	320	6.40	163
1004-1212	15.38	391	15.38	391	6.40	163
1004-1515	19.70	500	19.70	500	9.89	251
1004-1818	22.50	572	22.50	572	9.89	251
1004-2121	26.70	678	26.70	678	9.89	251
1004-2424	30.50	775	30.50	775	9.89	251
1004-2727	34.00	864	34.00	864	9.89	251

* Supplied with reducer.
Maximum Test Pressure: 4.3 PSI (29.6 KPA)
Maximum Operating Temperature: 140° F nonconsistent

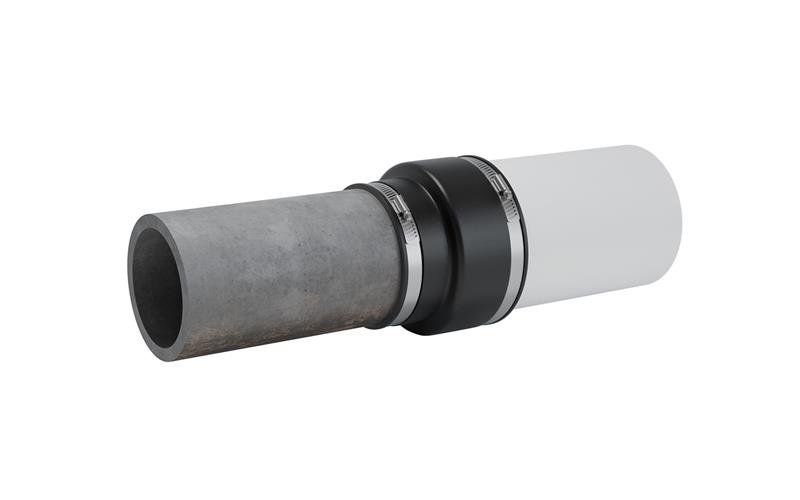

Connecting 1006 Series - Concrete to Cast Iron or Plastic

1006 Series - Concrete to Cast Iron or Plastic

Part No.	Side A		Side B		Width C
	inches	mm	inches	mm	inches	mm
1006-43	5.56	141	3.53	90	3.90	99
1006-44	5.57	141	4.31	109	3.96	101
1006-64	7.75	197	4.31	109	5.92	150
1006-65 *	7.66	195	5.50	140	5.86	149
1006-66	7.66	195	6.65	169	5.86	149
1006-84	10.25	260	4.38	111	6.18	157
1006-86 *	10.25	260	6.38	162	6.18	157
1006-88	10.25	260	8.50	216	5.93	151
1006-12-6
1006-10-8 *	12.50	318	8.38	213	6.62	168
1006-10-8RC	12.4	314.96	8.38	212.85	5.9	149.86
1006-1010	12.60	320	10.60	269	6.37	162
1006-12-8	16.29	414	8.38	213	6.55	166
1006-1210 *	16.29	414	10.75	273	6.55	166
1006-1210RC	15.25	387.35	10.6	269.24	6.42	163.07
1006-1212	16.29	414	12.39	315	6.30	160
1006-1515 *	19.82	503	15.43	392	9.68	246
1006-1818 *	22.50	572	18.90	480	9.89	251
1006-2121 *	26.70	678	22.30	566	9.89	251
1006-2424 *	30.50	775	25.00	635	9.89	251
1006-2727 *	34.00	864	28.00	711	9.89	251

* Supplied with reducer.
Maximum Test Pressure: 4.3 PSI (29.6 KPA)
Maximum Operating Temperature: 140° F nonconsistent

Connecting 1051 Series - Asbestos Cement Fibre (AC) or Ductile Iron to Cast Iron or Plastic

1051 Series - Asbestos Cement Fibre or Ductile Iron to Cast Iron or Plastic

Part No.	Side A		Side B		Width C
	inches	mm	inches	mm	inches	mm
1051-43	4.80	122	3.38	86	4.06	103
1051-44	4.80	122	4.40	112	4.06	103
1051-45	5.00	127	5.52	140	4.22	107
1051-53
1051-54	5.75	146	4.47	114	3.95	100
1051-55	6.05	154	5.54	141	5.03	128
1051-64	6.84	174	4.30	109	5.93	151
1051-65	6.81	173	5.17	131	5.81	148
1051-66	7.66	195	6.39	162	5.85	148
1051-86 *	9.12	232	6.38	162	6.23	158
1051-88	9.12	232	8.49	216	5.98	152
1051-10-8 *	11.05	281	8.38	213	5.95	151
1051-1010	11.05	281	10.65	271	5.95	151
1051-1210 *	13.00	330	10.75	273	6.49	165
1051-1212	13.00	330	12.38	314	6.24	158
1051-1215	15.44	392	13.20	335	10.00	254
1051-1515	15.90	404	15.90	404	9.89	251
1051-1615	18.14	461	15.60	396	6.85	174
1051-1818	19.70	500	18.90	480	9.89	251

* Supplied with reducer.
Maximum Test Pressure: 4.3 PSI (29.6 KPA)
Maximum Operating Temperature: 140° F nonconsistent

Connecting 1055 Series - AC or Ductile Iron to AC or Ductile Iron

1055 Series - Asbestos Cement Fibre or Ductile Iron to Asbestos Cement Fibre or Ductile Iron.

Part No.	Side A		Side B		Width C
	inches	mm	inches	mm	inches	mm
1055-44	4.76	121	4.76	121	3.96	101
1055-54 *	6.05	154	5.00	127	5.28	134
1055-55	6.00	152	5.86	149	4.91	125
1055-64	6.81	173	4.80	122	5.56	141
1055-65	6.84	174	5.89	150	5.88	149
1055-66	6.95	177	6.95	177	5.92	150
1055-86 *	9.12	232	6.80	173	6.23	158
1055-88	9.05	230	9.05	230	5.98	152
1055-10-8 *	11.05	281	9.05	230	5.95	151
1055-1010	10.86	276	10.86	276	5.91	150
1055-1210 *	13.00	330	11.12	282	6.24	158
1055-1212	13.20	335	13.20	335	5.97	152
1055-1615 *	18.10	460	16.50	419	9.89	251

* Supplied with reducer.
Maximum Test Pressure: 4.3 PSI (29.6 KPA)
Maximum Operating Temperature: 140° F nonconsistent

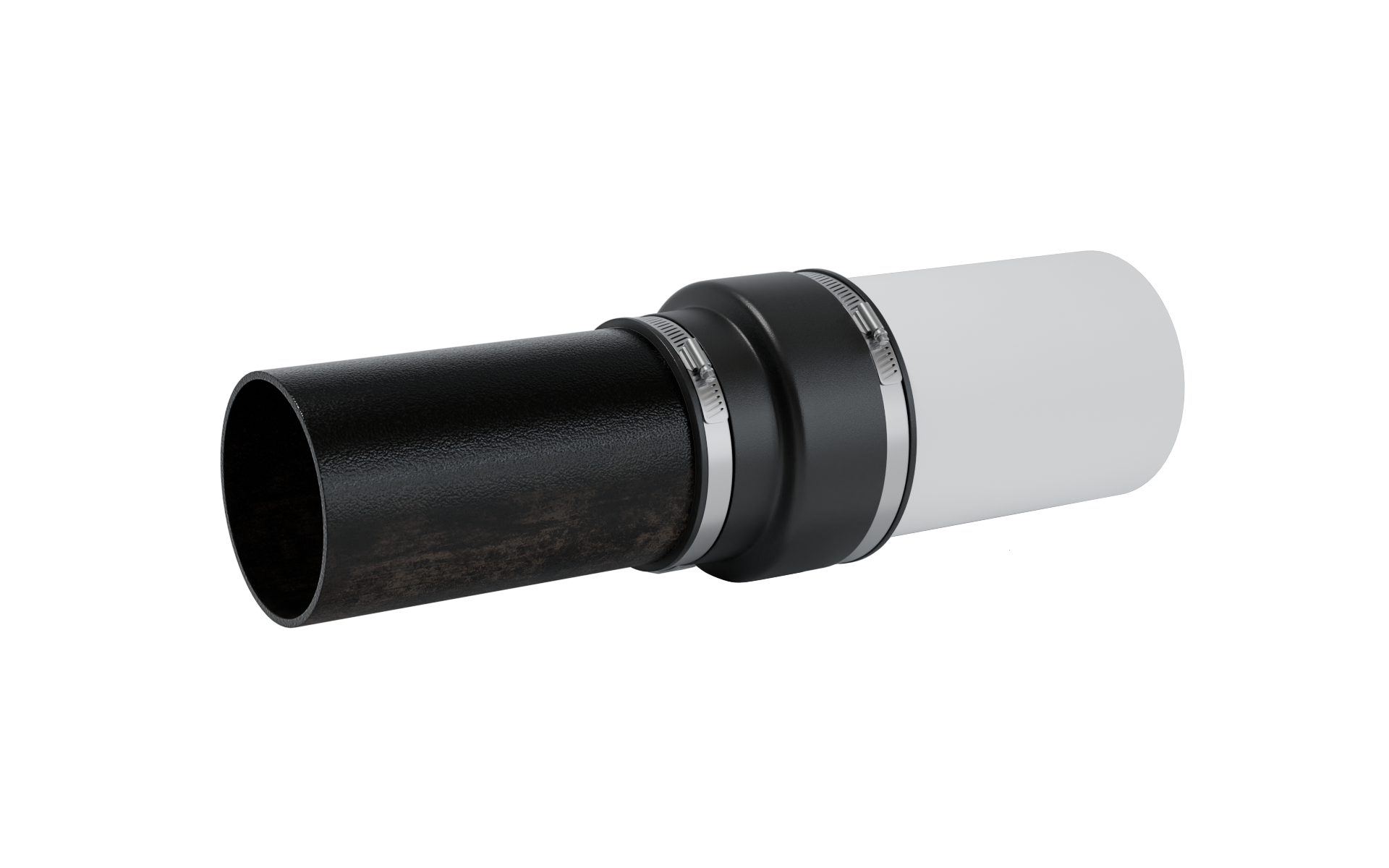

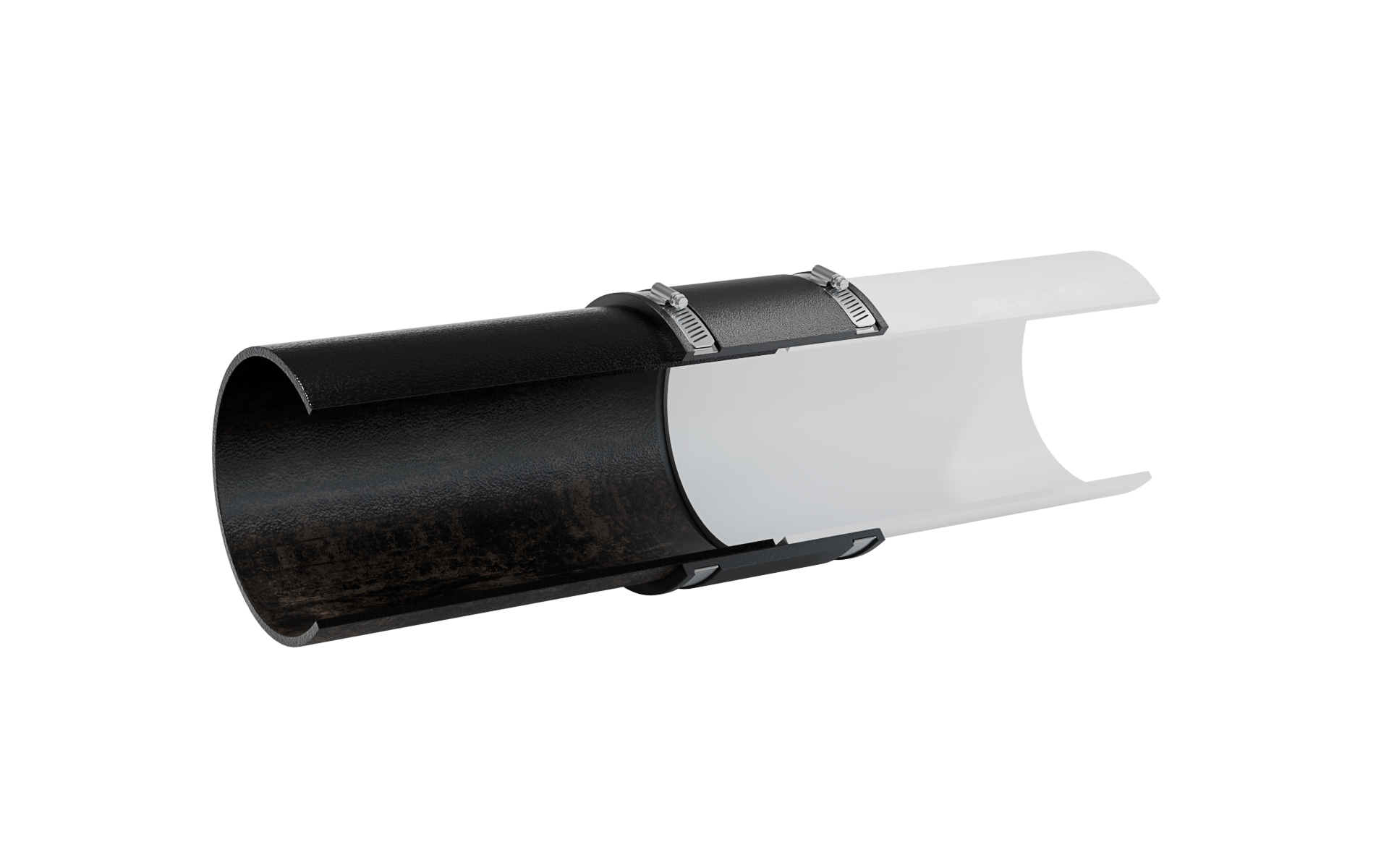

Connecting 1056 Series - CI, PL, Copper, ST or Lead to CI, PL, Copper, ST or Lead

1056 Series - Cast Iron or Plastic to Cast Iron or Plastic

Part No.	Side A		Side B		Width C
	inches	mm	inches	mm	inches	mm
1056-125	1.63	41	1.63	41	3.45	88
1056-150/125	1.94	49	1.63	41	3.45	88
1056-150	1.94	49	1.94	49	3.43	87
1056-215	2.41	61	1.84	47	3.39	86
1056-222
1056-22	2.41	61	2.41	61	3.45	88
1056-315	3.35	85	1.91	49	3.87	98
1056-350
1056-32	3.52	89	2.38	60	3.96	101
1056-33	3.46	88	3.46	88	3.98	101
1056-415	4.40	112	1.91	49	3.96	101
1056-42	4.40	112	2.35	60	3.88	99
1056-43	4.46	113	3.52	89	4.03	102
1056-44	4.58	116	4.58	116	4.02	102
1056-44XL
1056-53 *	5.56	141	3.53	90	3.90	99
1056-54	5.57	141	4.26	108	3.95	100
1056-55	5.52	140	5.52	140	3.97	101
1056-63 *	6.61	168	3.38	86	5.75	146
1056-64	6.61	168	4.46	113	5.75	146
1056-65	6.48	165	5.46	139	5.77	147
1056-66	6.60	168	6.60	168	5.74	146
1056-84 *	8.51	216	4.38	111	5.99	152
1056-86	8.51	216	6.38	162	5.99	152
1056-88	8.64	219	8.64	219	6.04	153
1056-10-6	10.25	260	6.38	162	6.23	158
1056-10-8	10.25	260	8.42	214	5.98	152
1056-1010	10.63	270	10.63	270	5.89	150
1056-1210	12.50	318	10.65	271	6.37	162
1056-1212	12.52	318	12.52	318	6.32	161
1056-1512	15.75	400	12.25	311	5.71	145
1056-1515	15.44	392	15.44	392	10.00	254
1056-1815 *	19.00	483	15.30	389	9.89	251
1056-1818	19.00	483	19.00	483	9.89	251
1056-2121	22.50	572	22.50	572	9.89	251
1056-2424	25.10	638	25.10	638	9.89	251
1056-2727	28.30	719	28.30	719	9.89	251

1056 Series - Condesnate Pipe Connectors

Part No.	Side A		Side B		Width C
	inches	mm	inches	mm	inches	mm
1056-075	1.05	27	1.05	27	2.38	60
1056-100	1.31	33	1.31	33	2.40	61

* Supplied with reducer.
Maximum Test Pressure: 4.3 PSI (29.6 KPA)
Maximum Operating Temperature: 140° F nonconsistent

Accessories

5/16" Ratchet Torque Wrench - TW100
Built-in reversing lever is preset to 60" lbs. torque. Recommended for Fernco Couplings and other banded Fernco products. Chrome plated shank, with all metal construction.
5/16" Ratchet Torque Wrench - TW200
With finger grip reversing collar that is preset to 60" lbs. torque. Recommended for Fernco Couplings and other banded Fernco products. Chrome plated shank, with all metal construction.
