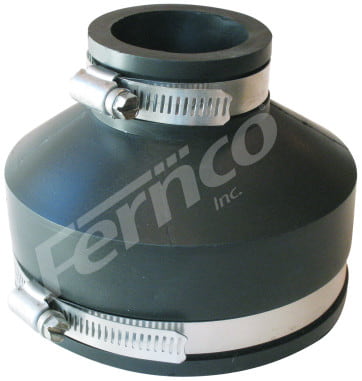

Pipe Sleeve Seals

Seal pipe sleeves and carrier pipes.

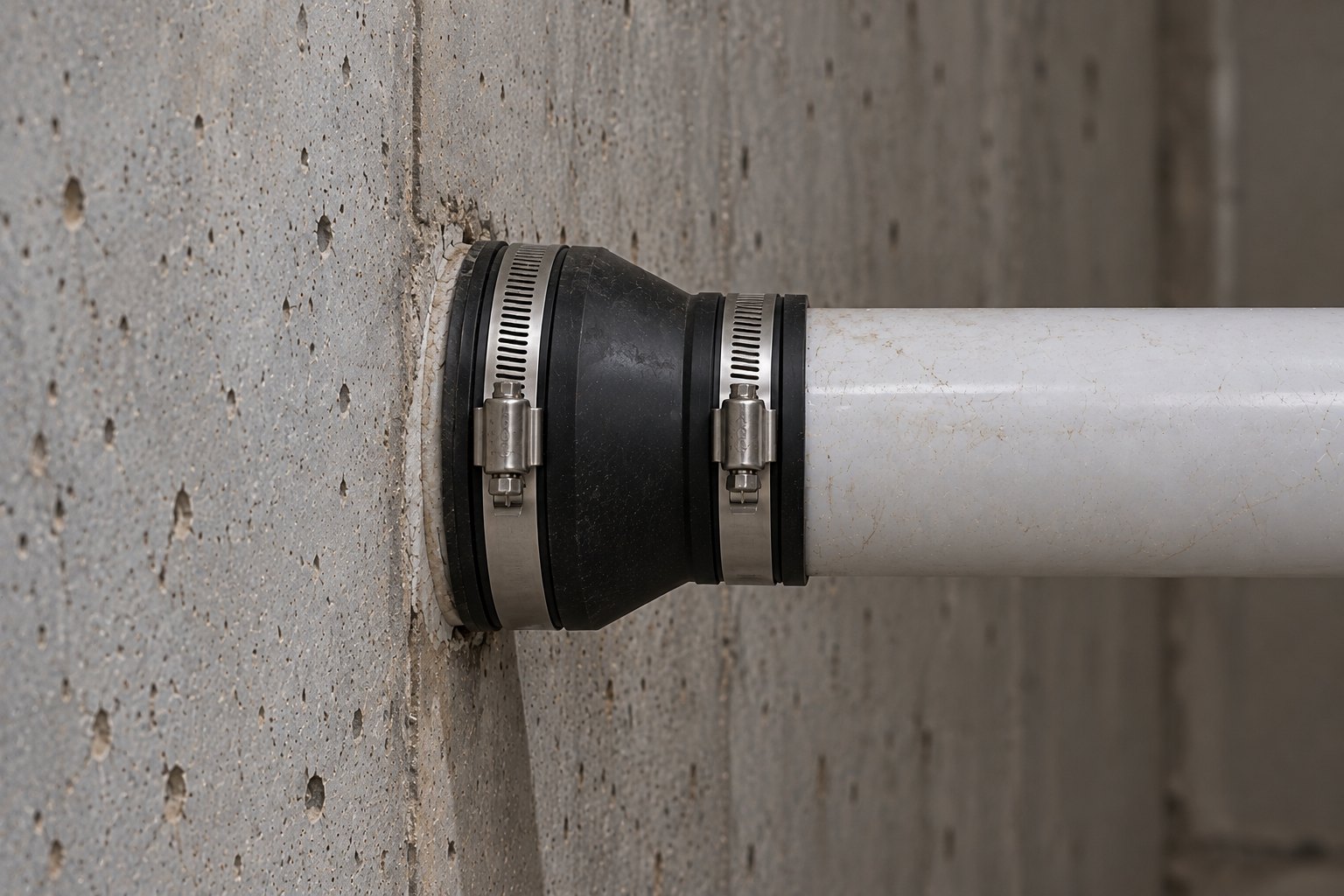

Pipe Sleeve Seals provide positive, mechanical seals around pipe sleeves and copper or plastic carrier pipes. They are functional above or below ground to keep out dirt, water, insects and more out of the pipe.

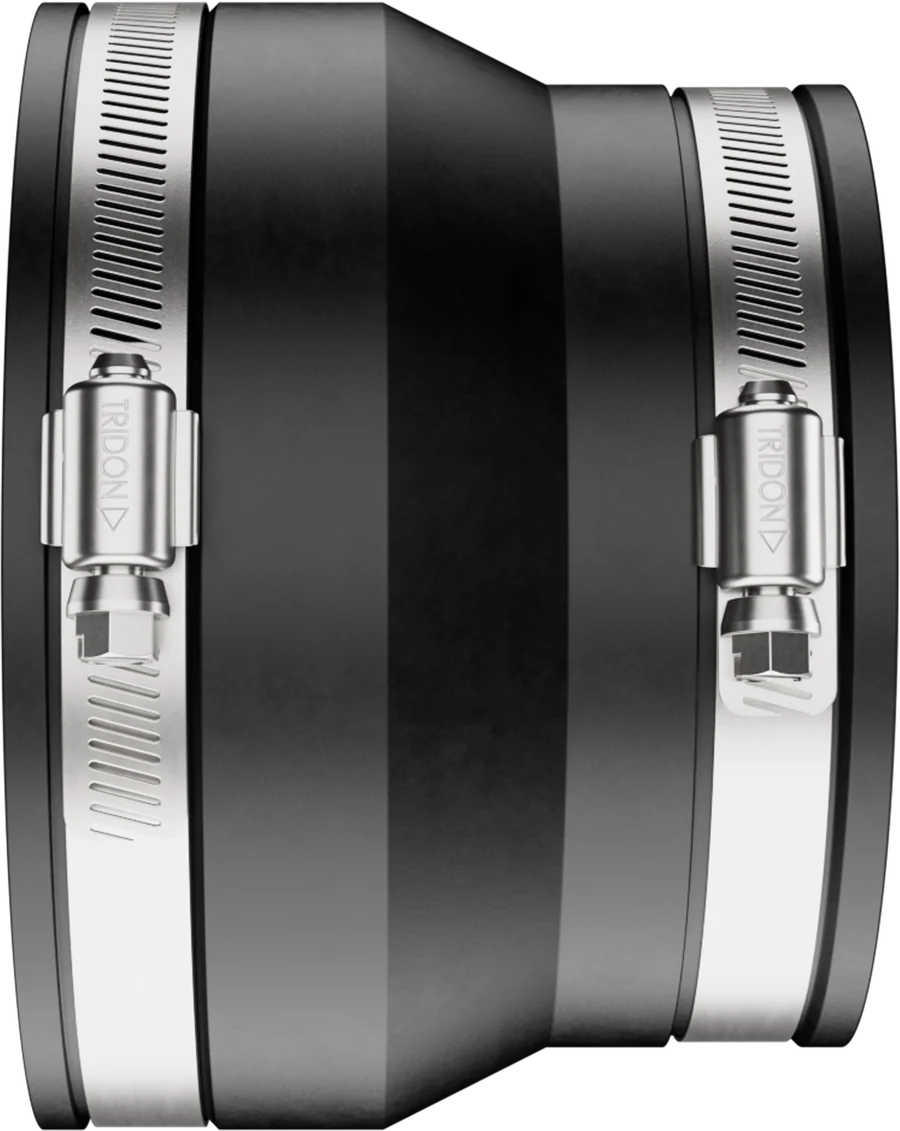

For a convenient installation, the carrier pipe slides easily through the Fernco Pipe Sleeve Seal and two stainless steel clamps tighten easily with a screw driver. No need sealing compounds that can typically damage plastic pipes.


  • Positive seal around pipe sleeve and copper or plastic carrier pipe
  • Above or below ground use
  • Sealing compounds not needed
  • 300 series stainless steel clamps


  • Leak-proof and root-proof
  • Resistant to chemicals, ultraviolet rays, fungus growth and sewer gas
  • Conforms to ASTM D5926, C1173 and CSA B602
  • Maximum test pressure: 4.3 PSI (29.6KPA)
  • Maximum operating temperature: 140º F non-consistent


Part No. Pipe Sleeve Size Carrier Pipe Size

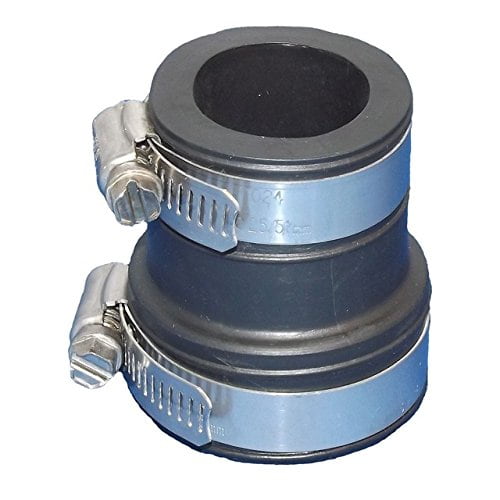

DTC 110 1-1/2" 3/4 or 1"
DTC 210 2" 3/4 or 1"

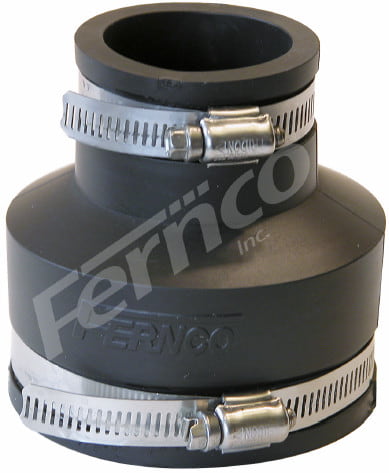

1056-315 3" 1-1/2"

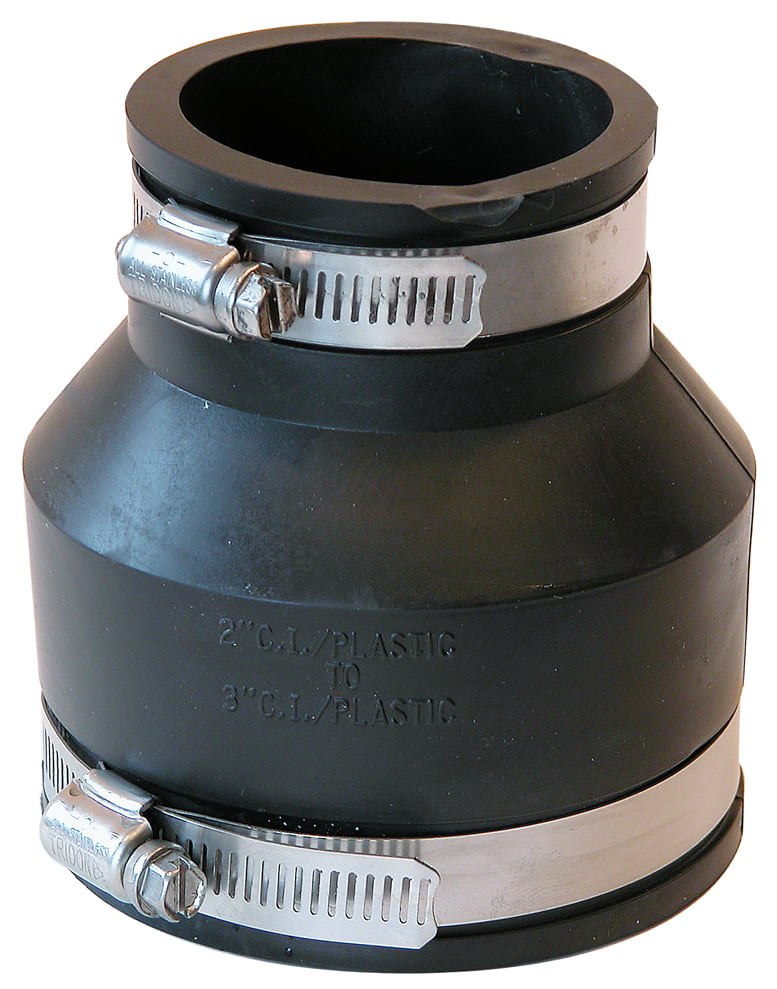

1056-32 3" 2"
1056-415 4" 1-1/2"
1056-42 4" 2"

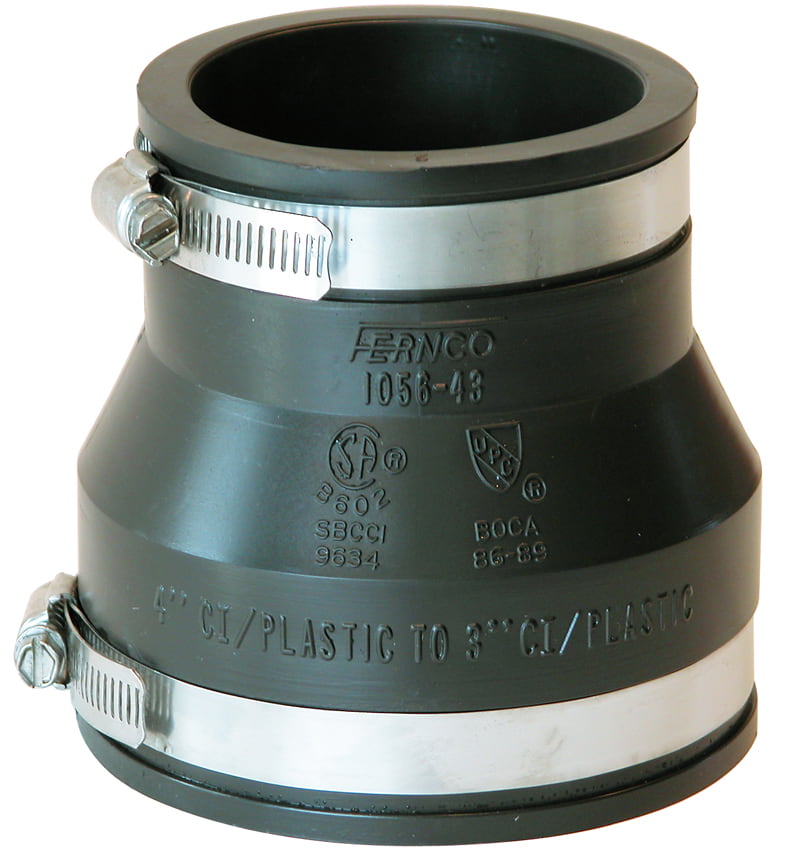

1056-43 4" 3"
Maximum Test Pressure: 4.3 PSI (29.6 KPA)
Maximum Operating Temperature: 140° F nonconsistent
