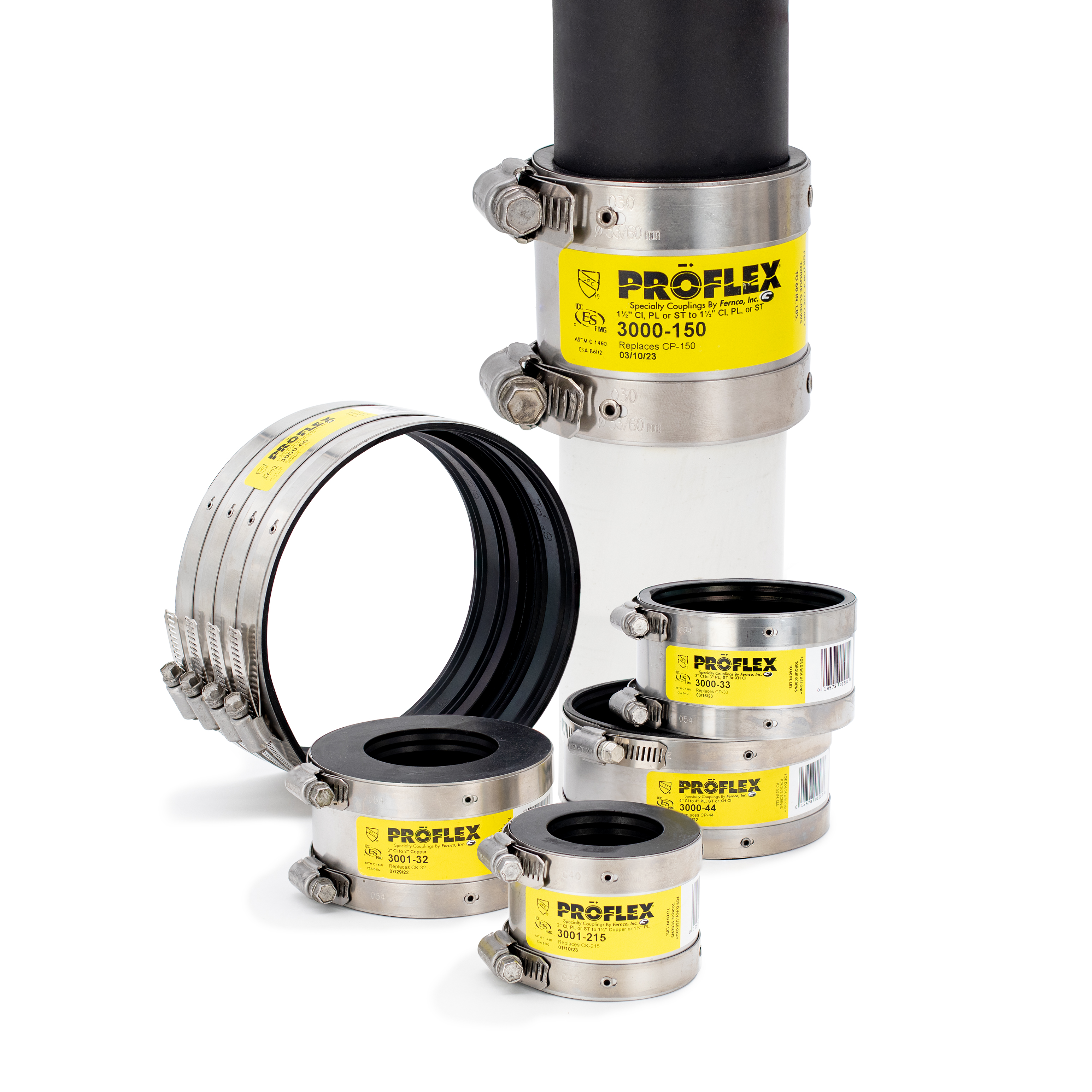

Shielded Couplings
The professional-grade choice for above-ground pipe transitions. A flexible elastomeric seal, wrapped in a stainless steel shield for shear resistance and a rigid, code-compliant connection.
Built for above-ground transitions.
Proflex makes a clean, code-compliant connection for residential and commercial DWV repairs, material changes and transitions. The stainless shield is what sets it apart from a standard flexible coupling: it resists shear and holds the joint rigid and aligned.
Shielded for professional performance.

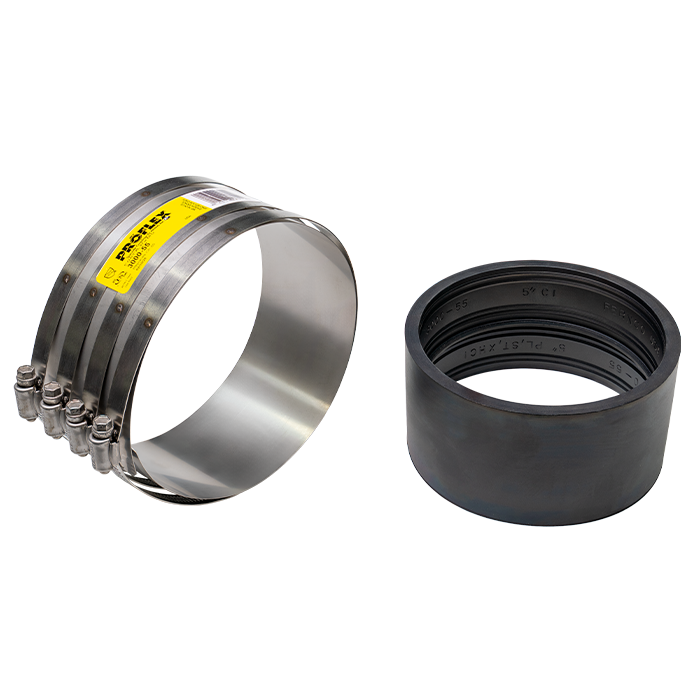

A flexible sleeve seals the joint while a stainless steel shield and clamp assembly add support for a rigid, professional-grade connection.
- Synthetic rubber gasket. Flexible elastomeric sleeve for a dependable above-ground seal.
- 301 stainless steel shield. Resists shear forces and keeps the connection stable and aligned.
- Stainless steel clamp assembly. 301 stainless bands and housings with 305 stainless screws.
- 60 in-lb installation torque. Fast, consistent installs with standard tools.
The pieces that make the joint.
Specifications.
Features
- Shielded design for above-ground DWV transitions
- 301 stainless steel shield for shear resistance
- 301 stainless bands and housings, 305 stainless screws
- Flexible elastomeric sealing sleeve
- Mission equivalent listed for every part
- Conforms to ASTM C1460, ASTM C564 and CSA B602
Technical
- Shield material
- 301 stainless steel
- Clamp bands & housings
- 301 stainless steel
- Clamp screws
- 305 stainless steel
- Gasket
- Synthetic rubber
- Installation torque
- 60 in-lbs
- Application
- Above-ground DWV
- Standards
- ASTM C1460, C564; CSA B602

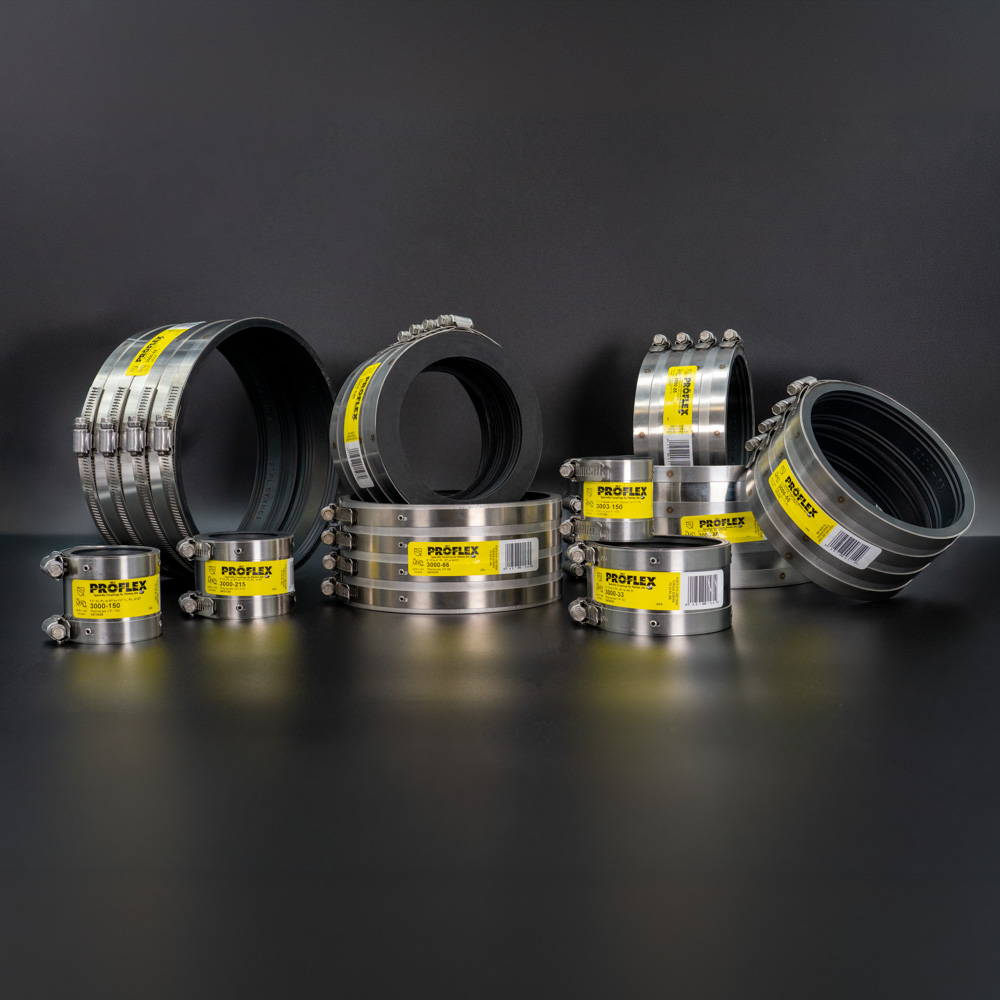

One shielded system for every transition.
From 3/4″ through 8″ and eleven transition types, Proflex spans cast iron, plastic, steel, copper, tubular and thinwall. Standardize on one professional-grade shielded coupling across your above-ground DWV work.
Find your coupling
Find the right Proflex coupling.
Enter the pipe material and nominal size on each side of the connection. The finder returns every Proflex part that makes that transition, with its Mission equivalent.
Or browse all parts.
All 47 Proflex parts by series. Search by part number, size or Mission equivalent.
3000 SeriesCast Iron to Plastic, Steel or XH Cast Iron9 parts
| Part No. | Pipe Size & Material (A) | Pipe Size & Material (B) | Mission Equivalent |
|---|---|---|---|
| 3000-150 | 1.5" Cast Iron, Plastic or Steel | 1.5" Cast Iron, Plastic or Steel | |
| 3000-215 | 2" Cast Iron, Plastic, Steel or Extra-Heavy Cast Iron | 1.5" Cast Iron, Plastic or Steel | |
| 3000-22 | 2" Cast Iron, Plastic, Steel or Extra-Heavy Cast Iron | 2" Cast Iron, Plastic, Steel or Extra-Heavy Cast Iron | |
| 3000-33 | 3" Cast Iron | 3" Plastic, Steel or Extra-Heavy Cast Iron | |
| 3000-43 | 4" Cast Iron | 3" Plastic, Steel or Extra-Heavy Cast Iron | |
| 3000-44 | 4" Cast Iron | 4" Plastic, Steel or Extra-Heavy Cast Iron | |
| 3000-55 | 5" Cast Iron | 5" Plastic, Steel or Extra-Heavy Cast Iron | |
| 3000-66 | 6" Cast Iron | 6" Plastic, Steel or Extra-Heavy Cast Iron | |
| 3000-88 | 8" Cast Iron | 8" Plastic, Steel or Extra-Heavy Cast Iron |
3001 SeriesCast Iron to Copper11 parts
| Part No. | Pipe Size & Material (A) | Pipe Size & Material (B) | Mission Equivalent |
|---|---|---|---|
| 3001-110 | 1.5" Cast Iron, Plastic or Steel | 1" Copper or 3/4" Plastic | |
| 3001-1125 | 1.5" Cast Iron, Plastic or Steel | 1.25" Copper or 1" Plastic | |
| 3001-150 | 1.5" Cast Iron, Plastic or Steel | 1.5" Copper or 1.25" Plastic | |
| 3001-2125 | 2" Cast Iron, Plastic or Steel | 1.25" Copper or 1" Plastic | |
| 3001-215 | 2" Cast Iron, Plastic or Steel | 1.5" Copper or 1.25" Plastic | |
| 3001-22 | 2" Cast Iron, Plastic or Steel | 2" Copper | |
| 3001-315 | 3" Cast Iron | 1.5" Copper or 1.25" Plastic | |
| 3001-32 | 3" Cast Iron | 2" Copper | |
| 3001-33 | 3" Cast Iron | 3" Copper | |
| 3001-43 | 4" Cast Iron | 3" Copper | |
| 3001-44 | 4" Cast Iron | 4" Copper |
3002 SeriesCast Iron, Plastic or Steel to Tubular3 parts
| Part No. | Pipe Size & Material (A) | Pipe Size & Material (B) | Mission Equivalent |
|---|---|---|---|
| 3002-150 | 1.5" Cast Iron, Plastic or Steel | 1.5" Tubular | |
| 3002-155 | 1.5" Tubular | 1.5" Tubular | |
| 3002-215 | 2" Cast Iron, Plastic or Steel | 1.5" Tubular |
3003 SeriesCopper to Copper4 parts
| Part No. | Pipe Size & Material (A) | Pipe Size & Material (B) | Mission Equivalent |
|---|---|---|---|
| 3003-150 | 1.5" Copper | 1.5" Copper or 1.25" Plastic | |
| 3003-215 | 2" Copper | 1.5" Copper or 1.25" Plastic | |
| 3003-22 | 2" Copper | 2" Copper | |
| 3003-33 | 3" Copper | 3" Copper |
3004 SeriesCast Iron to Cast Iron, Plastic or Steel4 parts
| Part No. | Pipe Size & Material (A) | Pipe Size & Material (B) | Mission Equivalent |
|---|---|---|---|
| 3004-320 | 3" Cast Iron | 2" Cast Iron, Plastic or Steel | |
| 3004-420 | 4" Cast Iron | 2" Cast Iron, Plastic or Steel | |
| 3004-430 | 4" Cast Iron | 3" Cast Iron | |
| 3004-540 | 5" Cast Iron | 4" Cast Iron |
3005 SeriesPlastic, Steel or XH Cast Iron to Plastic, Steel or XH Cast Iron4 parts
| Part No. | Pipe Size & Material (A) | Pipe Size & Material (B) | Mission Equivalent |
|---|---|---|---|
| 3005-33 | 3" Plastic, Steel or Extra-Heavy Cast Iron | 3" Plastic, Steel or Extra-Heavy Cast Iron | |
| 3005-43 | 4" Plastic, Steel or Extra-Heavy Cast Iron | 3" Plastic, Steel or Extra-Heavy Cast Iron | |
| 3005-44 | 4" Plastic, Steel or Extra-Heavy Cast Iron | 4" Plastic, Steel or Extra-Heavy Cast Iron | |
| 3005-66 | 6" Plastic, Steel or Extra-Heavy Cast Iron | 6" Plastic, Steel or Extra-Heavy Cast Iron |
3006 SeriesCopper to Cast Iron, Plastic or Steel3 parts
| Part No. | Pipe Size & Material (A) | Pipe Size & Material (B) | Mission Equivalent |
|---|---|---|---|
| 3006-215 | 2" Copper | 1.5" Cast Iron, Plastic or Steel | |
| 3006-32 | 3" Copper | 2" Cast Iron, Plastic or Steel | |
| 3006-43 | 4" Copper | 3" Cast Iron |
3007 SeriesPlastic, Steel or XH Cast Iron to Copper4 parts
| Part No. | Pipe Size & Material (A) | Pipe Size & Material (B) | Mission Equivalent |
|---|---|---|---|
| 3007-32 | 3" Plastic, Steel or Extra-Heavy Cast Iron | 2" Copper | |
| 3007-33 | 3" Plastic, Steel or Extra-Heavy Cast Iron | 3" Copper | |
| 3007-43 | 4" Plastic, Steel or Extra-Heavy Cast Iron | 3" Copper | |
| 3007-44 | 4" Plastic, Steel or Extra-Heavy Cast Iron | 4" Copper |
3008 SeriesPlastic, Steel or XH Cast Iron to Cast Iron, Plastic or Steel1 part
| Part No. | Pipe Size & Material (A) | Pipe Size & Material (B) | Mission Equivalent |
|---|---|---|---|
| 3008-32 | 3" Plastic, Steel or Extra-Heavy Cast Iron | 2" Cast Iron, Plastic or Steel |
No part matches that search. Try fewer terms, or contact Fernco.
Dimensional drawings.
Every Proflex size has a drawing with dimensions in inches and millimeters, the pipe sizes it fits, and a PDF to download.
Literature.
Sell sheet and catalogs for Proflex Couplings.
Frequently asked questions.
Selection, installation and compliance answers for Proflex.
What is a Proflex coupling?
Proflex is Fernco's shielded coupling for above-ground pipe transitions. A flexible elastomeric sleeve makes the seal, and a stainless steel shield and clamp assembly add rigidity and shear resistance for a professional-grade connection in DWV systems.
When should I use Proflex instead of a standard coupling?
Use Proflex for above-ground DWV work where the connection needs more support than a standard flexible coupling, such as material transitions and repairs in residential and commercial plumbing. The stainless shield resists shear and helps keep the joint rigid and aligned.
Is Proflex for above-ground or below-ground use?
Proflex is built for above-ground transitions. For buried transitions that carry earth loads or where pipes may shift, use a Strong Back RC shielded coupling, which adds a stainless steel shear ring for underground service.
What pipe materials does Proflex connect?
Depending on the series, Proflex connects cast iron, plastic, steel, extra-heavy cast iron, copper, tubular and thinwall plastic, in same-material and transition joints. Each 3000-series family covers one transition type. Match the pipe on each side to the series, then pick the part by nominal size.
What does the stainless steel shield do?
The 301 stainless steel shield wraps the sealing sleeve and, with the clamp assembly, resists shear forces and keeps the connection rigid and aligned. This is the main difference between a shielded Proflex coupling and an unshielded flexible coupling.
How do I find the Mission equivalent?
Every Proflex part lists its Mission equivalent in the part-number table on this page. Search by the Mission number to find the matching Proflex part, or filter by the materials you are connecting.
What standards does Proflex conform to?
Proflex conforms to ASTM C1460, ASTM C564 and CSA B602. Listings by product line are on the Codes and Standards page. Always confirm the application with your local plumbing code.

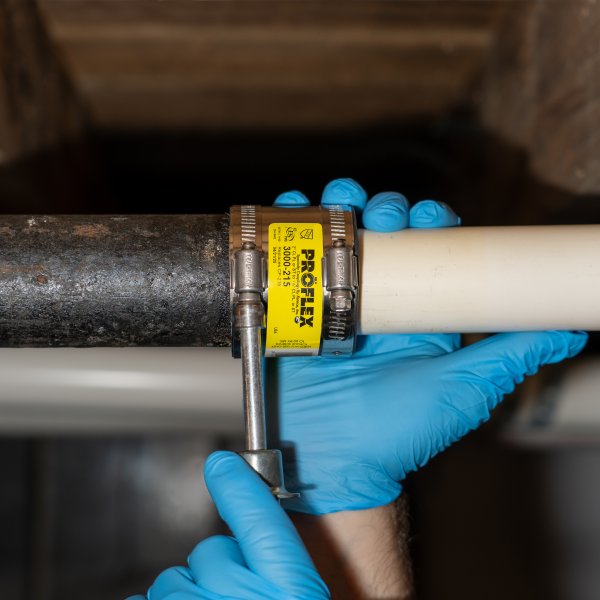

What is the installation torque?
Tighten the clamps to 60 in-lbs with standard tools. Pressure test the joint before concealing it, and follow the installation instructions supplied with the coupling.
