Shielded couplings
A stainless steel shield turns a flexible coupling into a rigid, aligned joint that resists shear. Learn what the shield does, when a job calls for one, and which Fernco line fits.
What the shield does
Proflex, No-Hub, Chemical
Strong Back RC and HULK
Common questions
Why shielded
Every Fernco flexible coupling seals with a flexible sleeve and stainless steel clamps. Under a slab, in a trench or on a heavy cast iron stack, that sleeve can give under load and let the pipe drop out of line. A shielded coupling wraps the sleeve in stainless steel, so the joint stays rigid where you can’t get back to it.
Stainless steel shear ring on every Strong Back RC
Stainless steel shield, bands and housings on Proflex
Install torque with standard tools
High torque bands on HTRC and Strong Back RC 16″ and larger

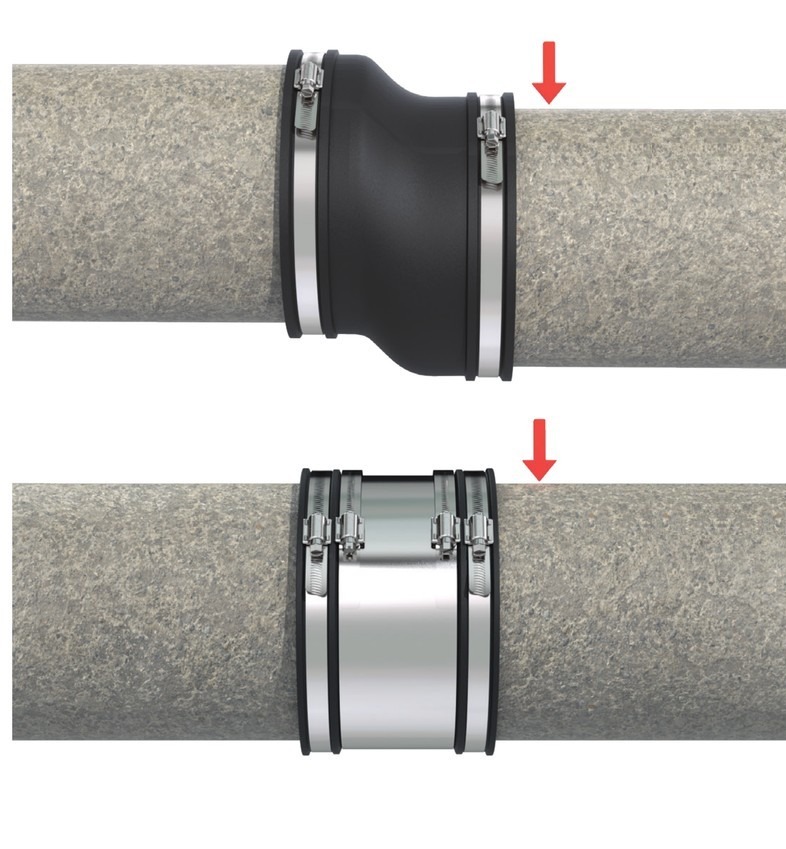

Unshielded
Deforms and shifts under load
Strong Back RC
Shear ring holds the line
Pick by the job
Find the job, then the coupling. Always follow the project specifications and your local plumbing code.
Cast iron stack to PVC, above ground
Basement and in-wall DWV transitions
Joining or repairing no-hub cast iron
Cast iron to cast iron, 1½″ to 15″
Chemical waste lines in labs, hospitals and plants
Effluent too aggressive for a standard coupling
Clay, concrete or cast iron to PVC, buried
Sewer laterals and building drains

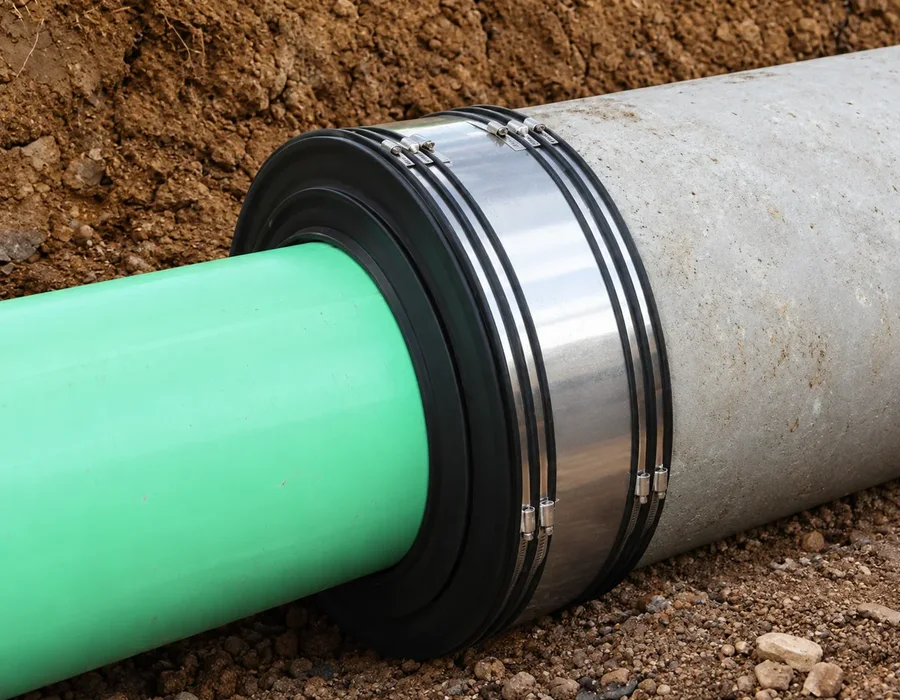

Larger buried transitions under heavy load
When you want a nut-and-bolt clamp
Buried repair when you are not sure of the pipe
One HULK per nominal size, 4″ to 12″
Pipe ends that don’t line up, or runs that move with temperature
Extra length grips more pipe
Corrugated polyethylene storm or sewer pipe
10″ to 60″, gravity flow
Adding strength to a Fernco coupling
Fits over Fernco flexible couplings
The lineup
Grouped by where the joint goes.
Above ground
Drain, waste and vent transitions inside the building, no-hub cast iron and chemical waste lines.

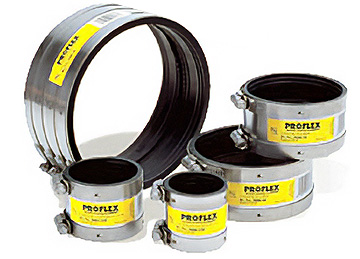

Shielded transition
Shielded transitions for above-ground DWV. A flexible sleeve in a 301 stainless steel shield.
Cast iron
Built for no-hub cast iron. A patented corrugated shield spreads clamping pressure across the gasket and pipe.
Chemical waste
A chemically inert FEP barrier inside a flexible, watertight connection, for aggressive chemical waste in labs, hospitals and processing plants.
Below ground
Every Strong Back RC adds a stainless steel shear ring to a Fernco flexible coupling. The HULK uses stainless steel rods inside the body instead.

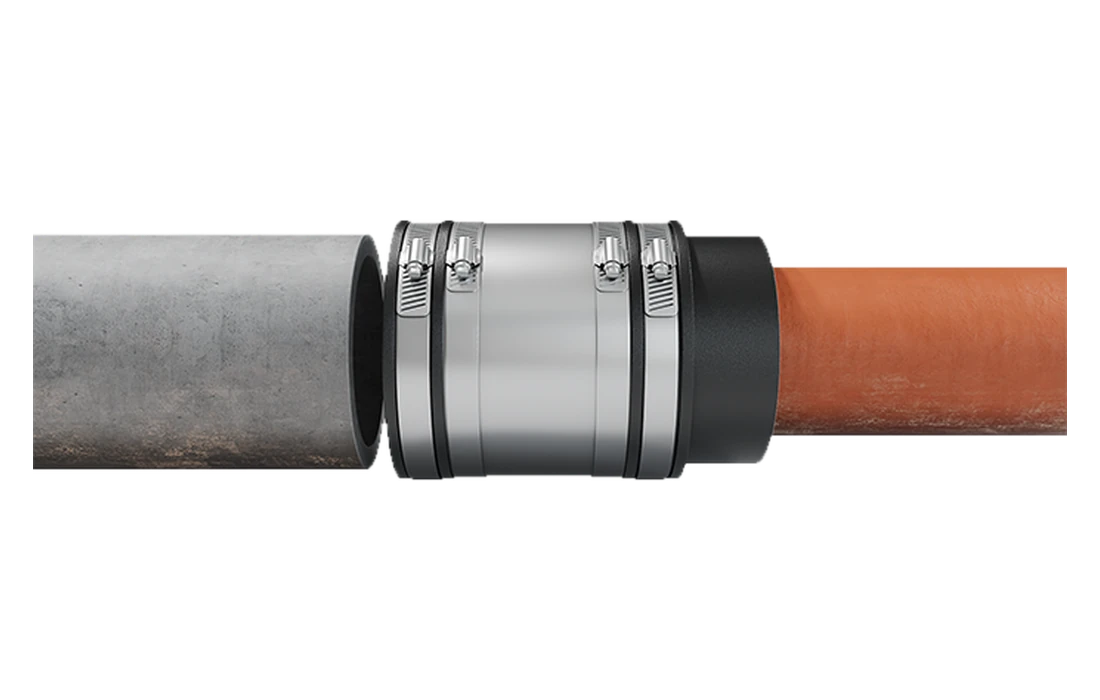

The standard
Stainless steel band clamps and a .012″ stainless steel shear ring for buried transitions.

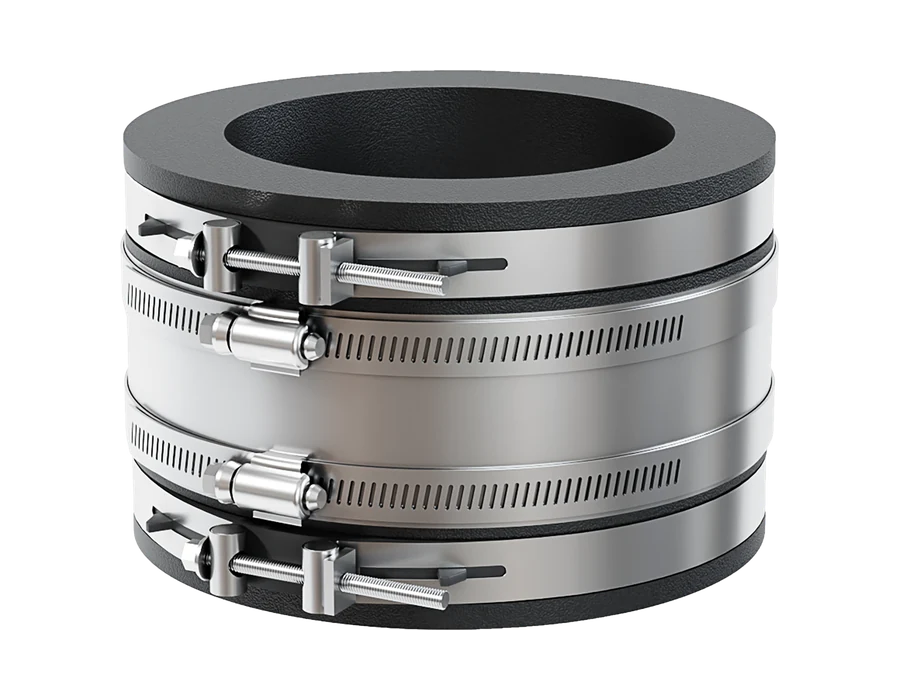

Nut-and-bolt clamp
The same shielded design with a 316 stainless steel nut-and-bolt clamp, for larger diameters under heavy loads.

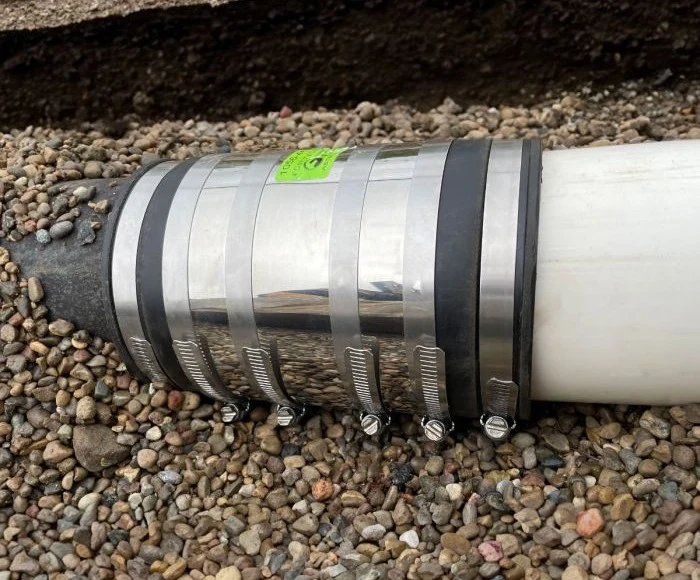

Extra length
An extra-long coupling that grips more pipe, for alignment problems and thermal movement. Adds the shear ring and two more clamp bands.

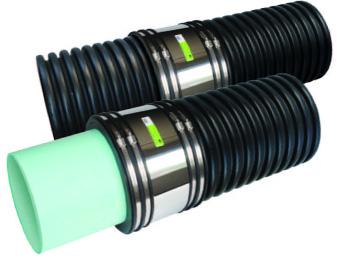

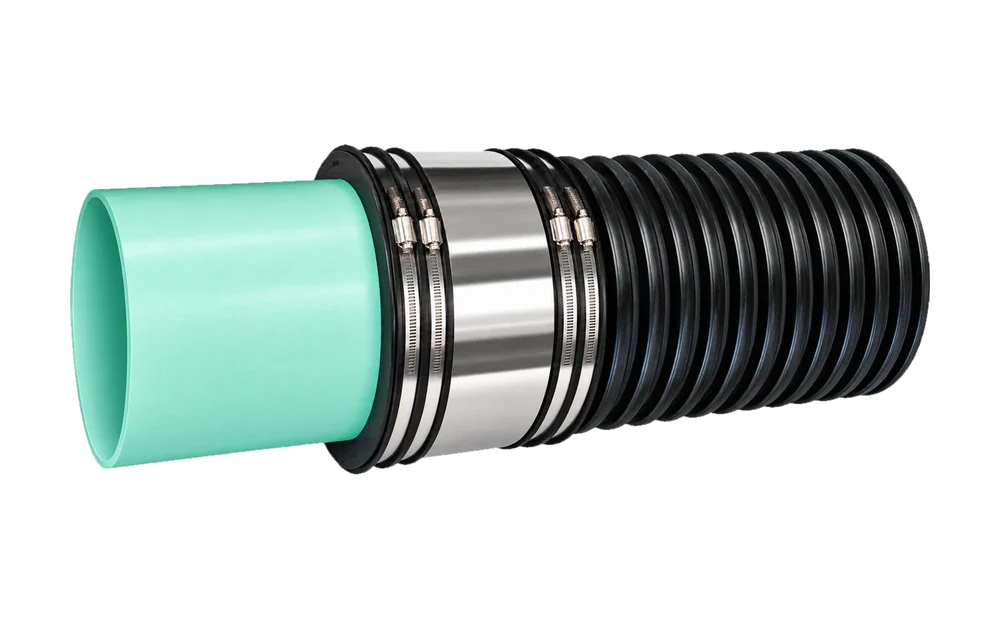

Corrugated pipe
For corrugated polyethylene pipe in gravity sewer and storm systems. High torque clamps give more sealing force.

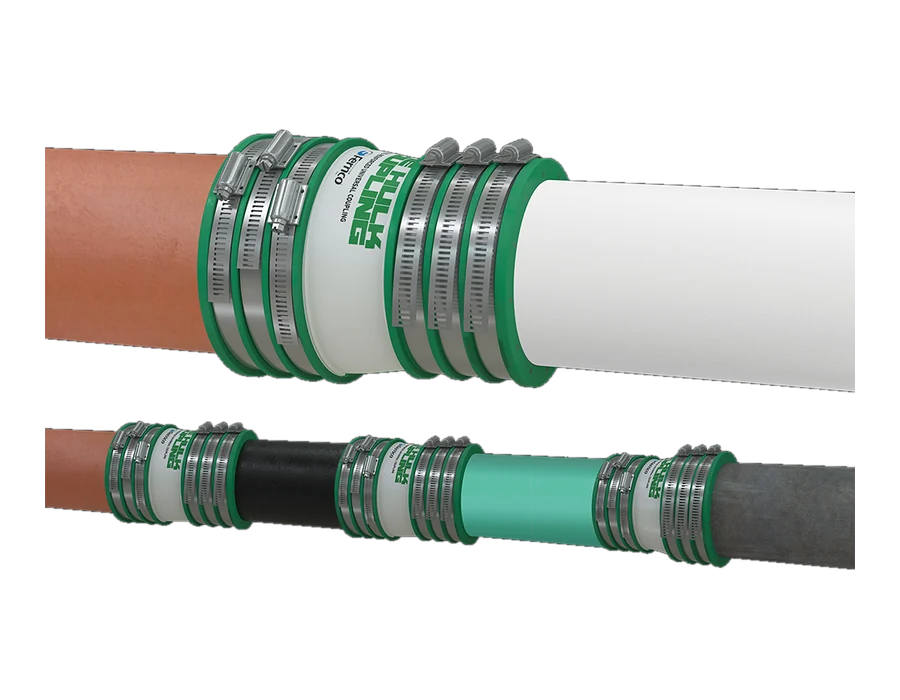

Rod reinforced
Not a shielded coupling. Stainless steel shear rods inside the body help resist pipe shift from soil, traffic or settlement.

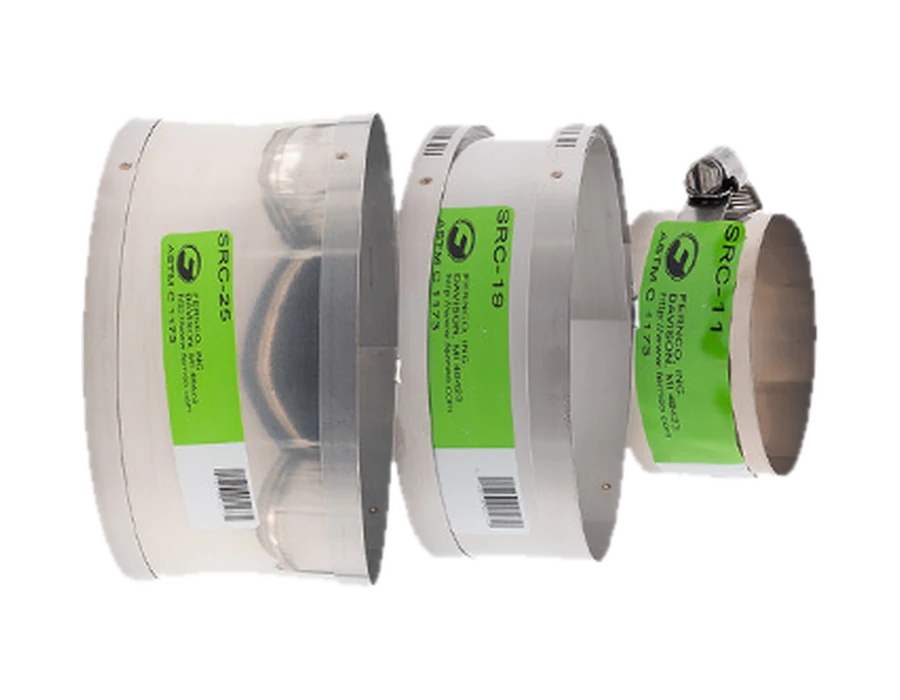

Add-on shield
Add extra strength to just about any Fernco coupling. Holds alignment in unstable ground with a simple install.
Side by side
| Line | Where | Pipe | Clamp and shield | Sizes |
|---|---|---|---|---|
| Proflex | Above ground DWV | Cast iron, plastic, steel, copper, tubular, thinwall | 301 stainless shield and bands | 3/4″ to 8″ |
| No-Hub | No-hub cast iron | Cast iron to cast iron | Stainless shield and interlocking clamps | 1½″ to 15″ |
| Strong Back RC 1000 | Below ground | Clay, concrete, ductile iron, cast iron, plastic, steel | 301 stainless worm-gear bands, shear ring | Ten series |
| Strong Back RC 5000 | Below ground, larger diameters | Clay, concrete, ductile iron, cast iron, plastic, steel | 316 stainless nut-and-bolt, shear ring | Larger diameters |
| XL RC | Alignment problems, thermal movement | Same pipe as standard couplings | Stainless bands, two extra, shear ring | 1½″ to 12″ |
| HTRC | Gravity sewer and storm | Corrugated polyethylene | High torque stainless, 120 in-lb | 10″ to 60″ |
| HULK | Below ground repair | Cast iron, clay, concrete, ductile iron, plastic, Orangeburg, steel | Stainless steel shear rods inside the body | 4″ to 12″ |
Conditions vary by region and job. Always follow the project specifications and your local codes when choosing a coupling.
Standards and compliance
Manufactured to conform to ASTM C1173 and CSA B602 performance requirements. The gasket meets ASTM D5926.
1000 Series Strong Back RC couplings 15″ and smaller are made in the USA and meet AIS and BABA requirements for federally funded projects.
FAQ
A shielded coupling is a flexible coupling with a stainless steel shield or shear ring wrapped around the flexible sleeve. The sleeve and clamps make the seal. The shield resists shear and keeps the joint rigid and aligned.
Use a shielded coupling where the joint carries load or may shift: above ground transitions that need extra support, no-hub cast iron, and buried pipe under earth loads or settlement. A standard coupling handles lighter-duty joints. Always follow the project specifications and your local plumbing code.
Proflex is the shielded choice for above ground drain, waste and vent transitions between cast iron, plastic, steel, copper and other pipe. For cast iron to cast iron no-hub systems, use Fernco No-Hub Couplings. For aggressive chemical waste, use Fernco Chemical Couplings.
Start with the pipe. Corrugated polyethylene pipe takes HTRC. For other pipe, the Strong Back RC 1000 Series is the standard choice. Choose the 5000 Series for a nut-and-bolt clamp on larger diameters, or XL RC where the joint needs extra length.
Yes. Fernco Stainless Steel Shear Rings add extra strength to just about any Fernco coupling and help hold alignment in unstable ground. Bushings are supplied separately for material transition and size reduction.
Proflex and Strong Back RC clamps are tightened to 60 inch-pounds. Strong Back RC couplings 16 inches and larger ship with high torque bands tightened to 120 inch-pounds, as do HTRC couplings. Follow the current Fernco installation instructions for the specific coupling.
1000 Series Strong Back RC couplings 15 inches and smaller are made in the USA and comply with American Iron and Steel (AIS) and Build America, Buy America (BABA) requirements. The 5000 Series is not AIS or BABA compliant.
Yes. The HULK is built for underground sewer and drain repair. It is not a shielded coupling. It is reinforced inside with corrosion-resistant stainless steel shear rods that help resist pipe shift from soil, traffic or settlement. One HULK per nominal size, 4 inches to 12 inches, connects cast iron, clay, concrete, ductile iron, plastic, Orangeburg, Duriron and steel.
Tell us the pipe on each side and the job. A Fernco rep will help you pick.
