Under the sink
Dishwasher Drain Connector
Connects your dishwasher drain hose to a garbage disposal, a dishwasher branch tailpiece or an air gap. Fits 5/8″ and 7/8″ dishwasher hoses, smooth or corrugated.
5/8″ and 7/8″ O.D.
Cut to fit
Smooth or corrugated hose
Made in USA
Make the hose fit
New dishwasher, old connection. The drain hose often doesn’t match the disposal inlet or the branch tailpiece, and a clamp alone won’t seal it. This flexible connector closes the gap and seals both ends.
Dishwasher hose
Smooth or corrugated. Fits most dishwasher drain hoses
Seals both ends
Flexible PVC with two stainless steel clamps
To the drain
A disposal inlet, a dishwasher branch tailpiece or an air gap
Two sizes
As it comes, it’s 1/2″ x 3/4″. Cut off the narrow end at the step and it’s 3/4″ x 3/4″.
5/8″ & 7/8″
Fits 5/8″ and 7/8″ O.D. connections.
No glue
No glue or special tools. Tighten the clamps with a hand screwdriver or nut driver. No power tools.
Corrugated too
Seals smooth or corrugated dishwasher hose.
Made in USA
Flexible PVC with 200 series stainless steel clamps.
Cut to fit
One connector, two ways to use it. Measure across the outside of what you’re connecting to.

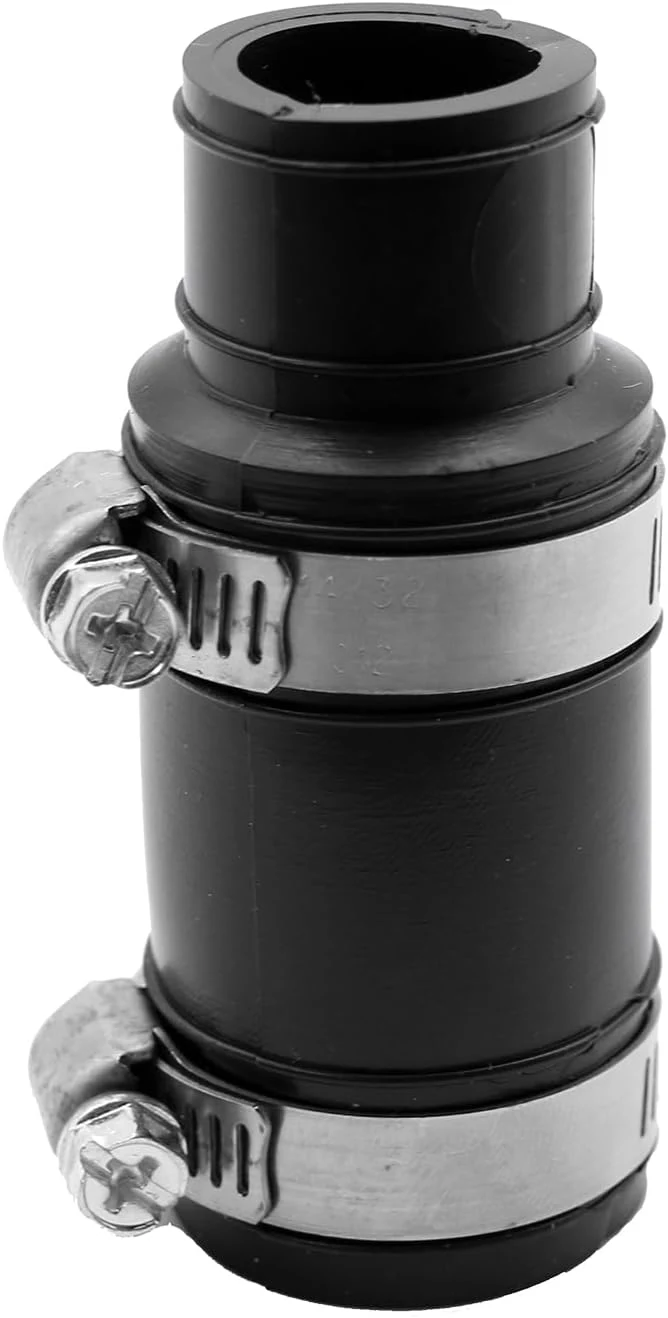

As it comes
1/2″ x 3/4″
Narrow end
Fits 5/8″ O.D.
Wide end
Fits 7/8″ O.D.
Cut at the step
3/4″ x 3/4″
Both ends
Fit 7/8″ O.D.
- 5/8″ O.D. Smaller dishwasher drain hoses. The narrow end goes on the hose.
- 7/8″ O.D. Most garbage disposal dishwasher inlets and branch tailpiece outlets, and larger hoses. Air gap ports vary by brand.
Cut straight around, flush with the step, using a sharp utility knife.
Where it goes
The connector joins the hose to whatever the sink drain has for a dishwasher.
Cut at the step for a 7/8″ hose
Garbage disposal
Most disposal dishwasher inlets are about 7/8″ O.D. With a 7/8″ hose, cut off the narrow end so both ends fit 7/8″. On a new disposal, knock out the inlet plug first.
1/2″ x 3/4″, as it comes
No disposal

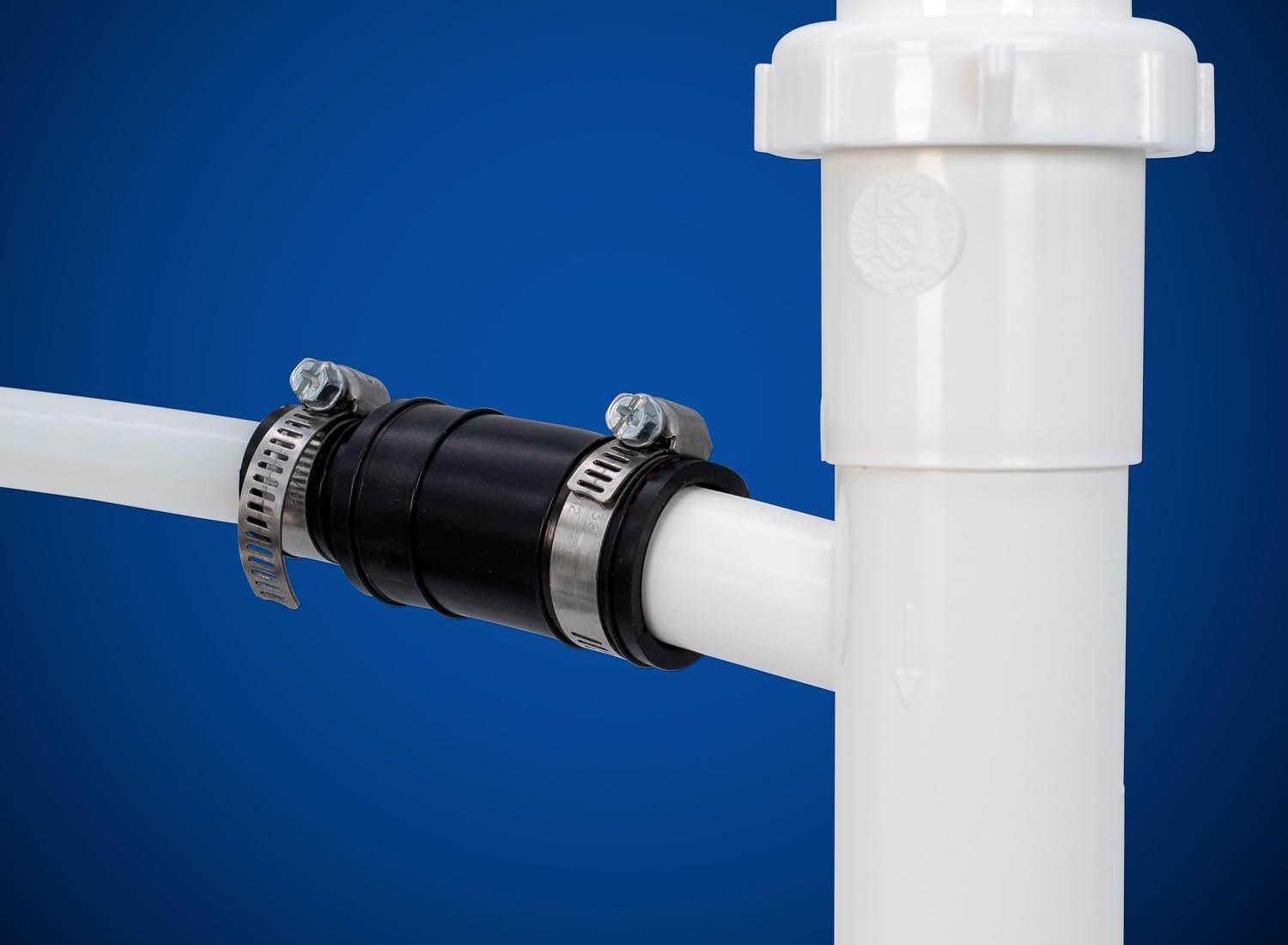

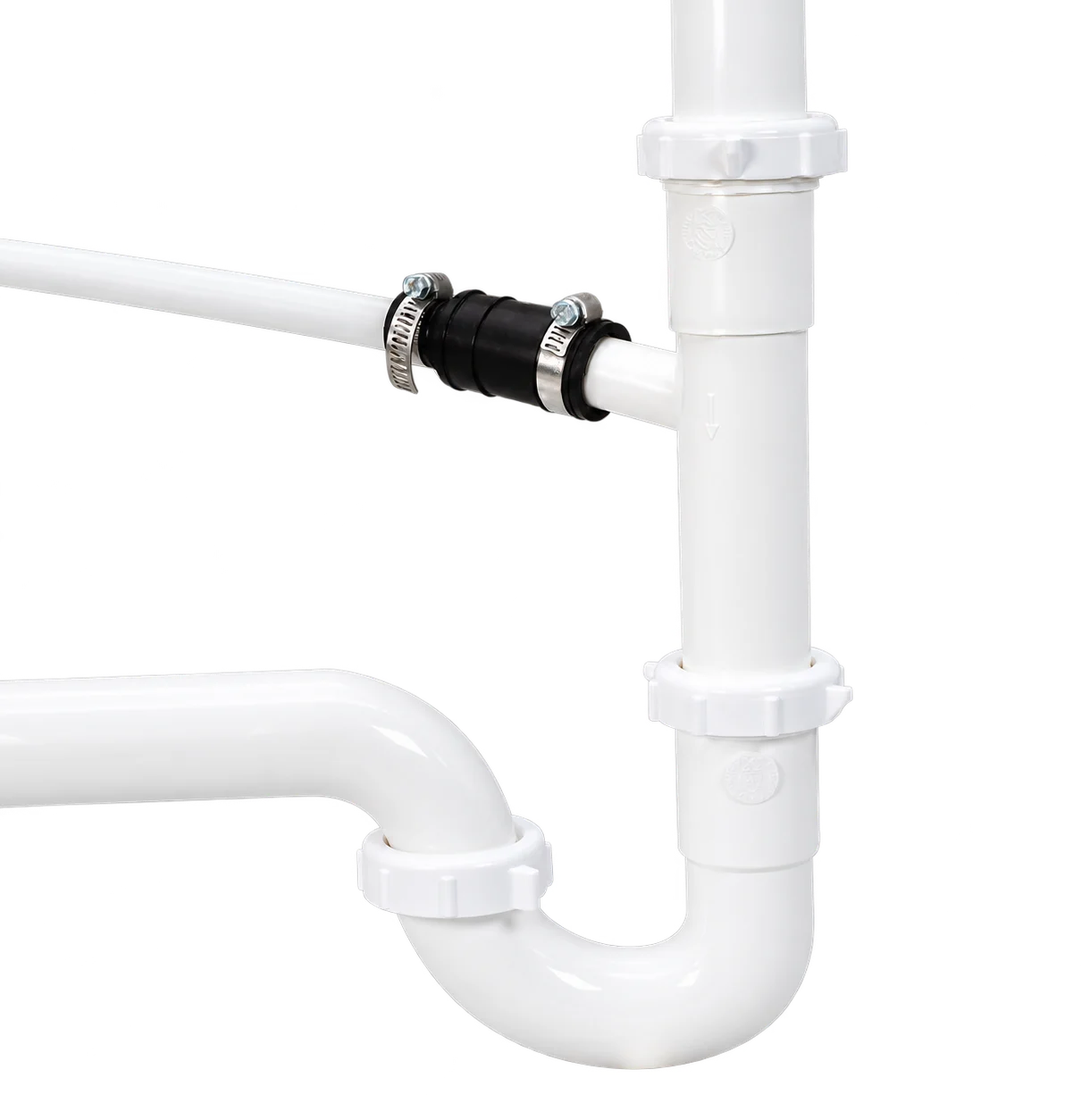

Connects to the side outlet of a dishwasher branch tailpiece or wye, above the trap. Narrow end on a 5/8″ hose, wide end on a 7/8″ outlet.
Measure the port first
Air gap
Connects the hose to an air gap where local code requires one. Air gap port sizes vary by brand, so measure the port before you install.

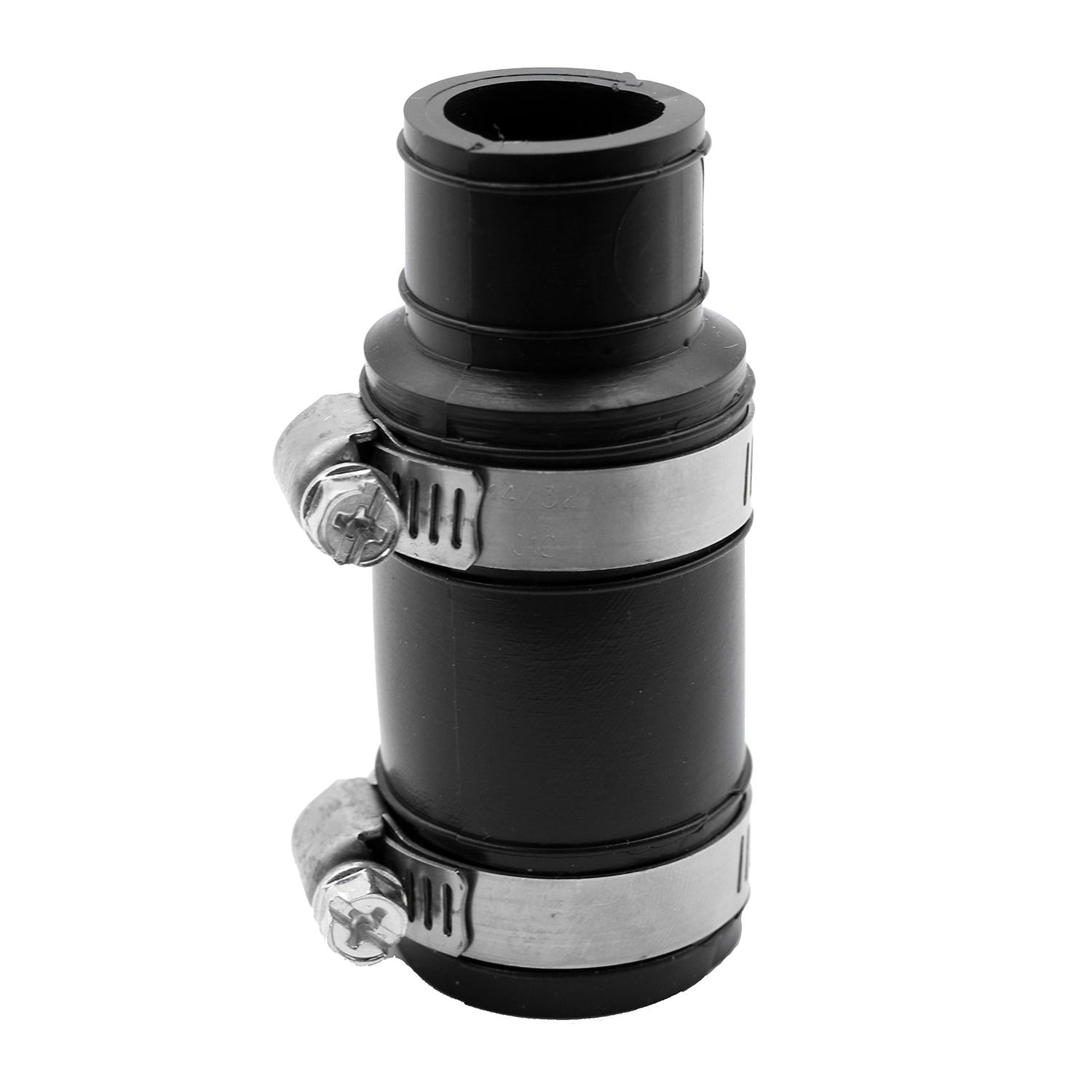

DWC-100
Dishwasher Drain Connector
1/2″ or 3/4″ x 3/4″. Fits 5/8″ and 7/8″ O.D. connections. Cut at the step to go from 1/2″ to 3/4″.
- Dishwasher hose to disposal, branch tailpiece or air gap
- Smooth or corrugated hose
- Flexible PVC with stainless steel clamps
- Made in USA

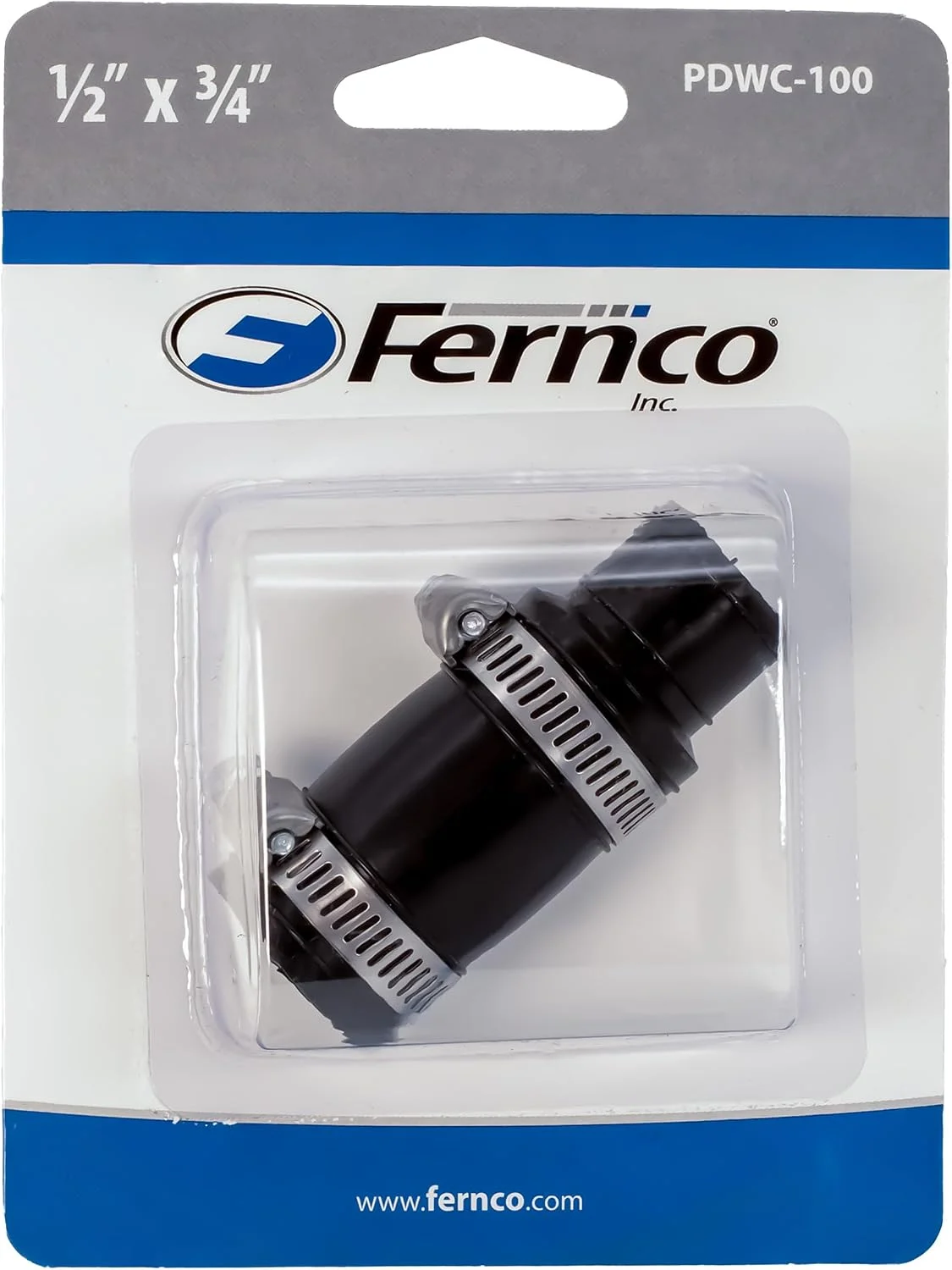

- Also sold on a retail card as PDWC-100
Four steps
1
Check the inlet
New disposal? Knock out the dishwasher inlet plug first, or the dishwasher won’t drain.
2
Fit the ends
Narrow end on the hose, wide end on the drain fitting. If the hose is 7/8″ too, cut off the narrow end at the step.
3
Hand tighten
Tighten both clamps with a hand screwdriver or nut driver. No power tools.
4
Test
Run the dishwasher and check the connection for leaks.
Specifications
| Part | DWC-100 Dishwasher Drain Connector (retail card: PDWC-100) |
| Size | 1/2″ or 3/4″ x 3/4″ (nominal) |
| Fits | 5/8″ and 7/8″ O.D. connections |
| Inside diameter | 0.64″ (narrow end) and 0.92″ (wide end) |
| Length | 2.70″ |
| Material | Flexible PVC |
| Clamps | 200 series stainless steel, hand tighten only |
| Max temperature | 120°F |
| Made in | USA |
| Drawing | DWC-100 dimensional drawing |
Common questions
Will it fit my dishwasher hose?
It fits most dishwasher drain hoses, smooth or corrugated. The ends fit 5/8″ and 7/8″ O.D. connections. Not sure? Reach out with your measurements.
Which end goes where?
The narrow end goes on the hose and the wide end goes on the drain fitting, so the water flows from smaller to larger. The narrow end fits 5/8″ O.D. and the wide end fits 7/8″ O.D. If the hose is 7/8″ too, cut off the narrow end at the step.
I don’t have a garbage disposal. Will it work?
Yes. Connect it to the side outlet of a dishwasher branch tailpiece or wye on the sink drain. It doesn’t clamp onto the 1-1/2″ drain pipe itself.
Do I still need an air gap or a high loop?
Usually one or the other. Some areas, such as California and Minnesota, require an air gap. Others allow a high loop. The connector doesn’t replace either. Follow your local code and your dishwasher’s installation instructions.
Why won’t my dishwasher drain after I hooked it up?
On a new garbage disposal, check that the dishwasher inlet plug was knocked out. Also check that the hose isn’t kinked.
Why does the package say 1/2″ x 3/4″?
Those are the nominal sizes. Measured across the outside of the part it slides over, the ends fit 5/8″ and 7/8″.
