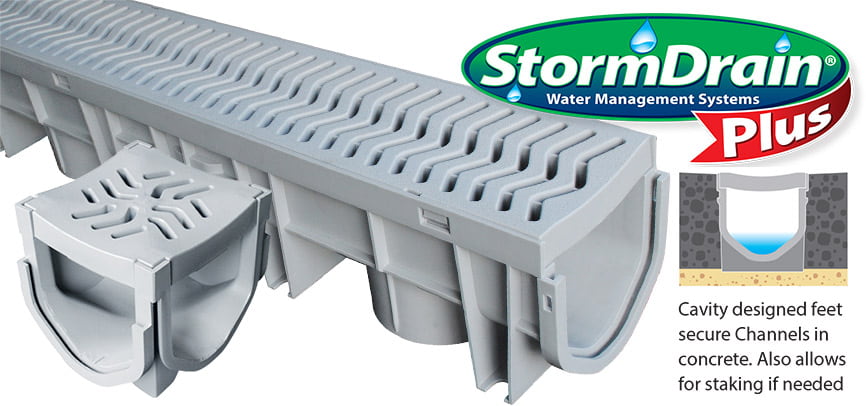

StormDrain Plus - Water Management Systems by Fernco

Improved Drainage

The durability & high performance of Fernco StormDrain Plus ensures a long lasting, permanent solution for the removal of standing surface water.

Applications

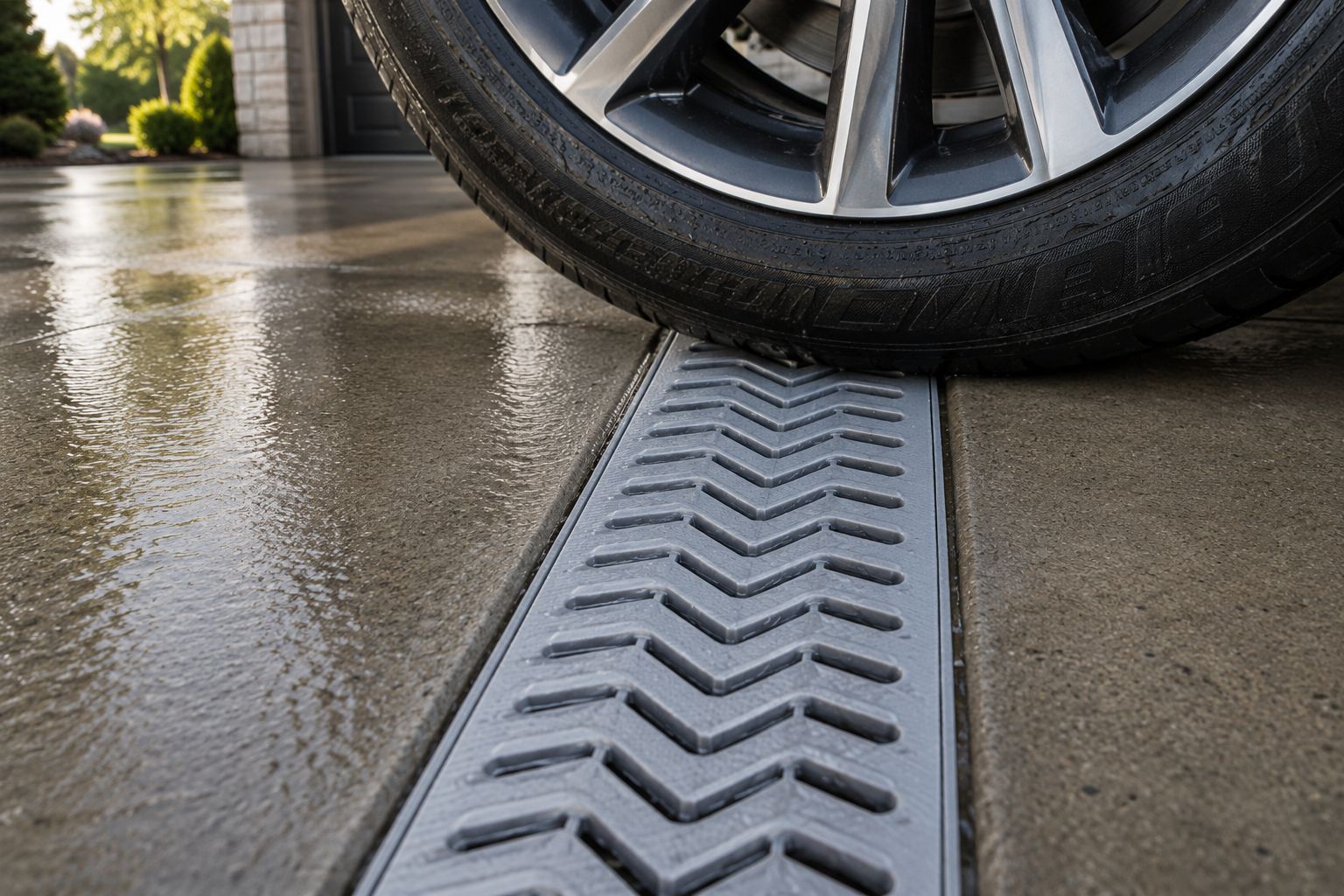

  • Driveways - Positioned between the garage and the driveway.

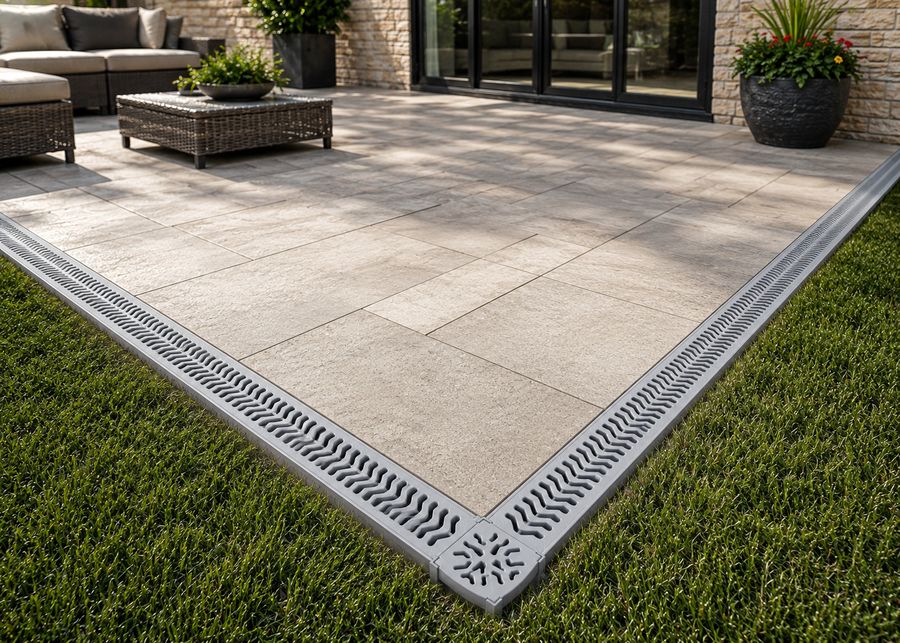

  • Patios - Where water may be pooling.

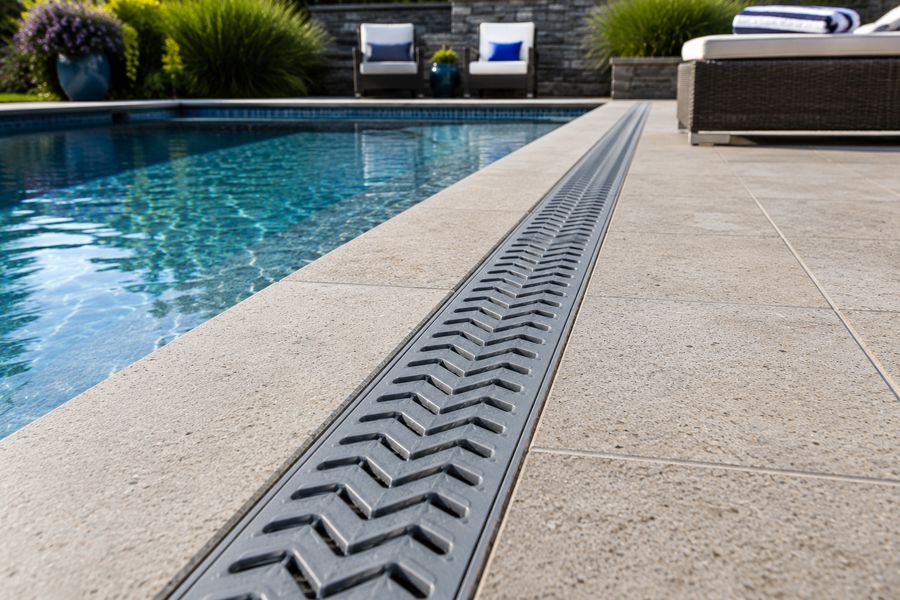

  • Swimming pools - Divert pool water away from grass.

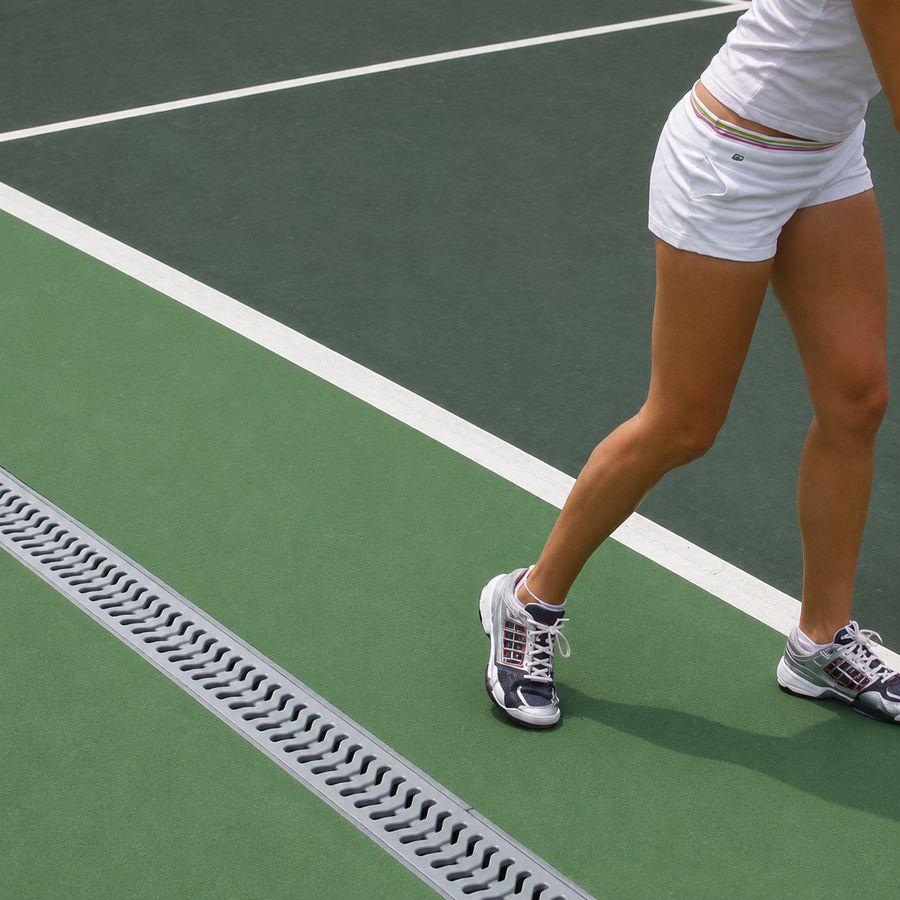

  • Sports Courts - When standing water could be hazardous.

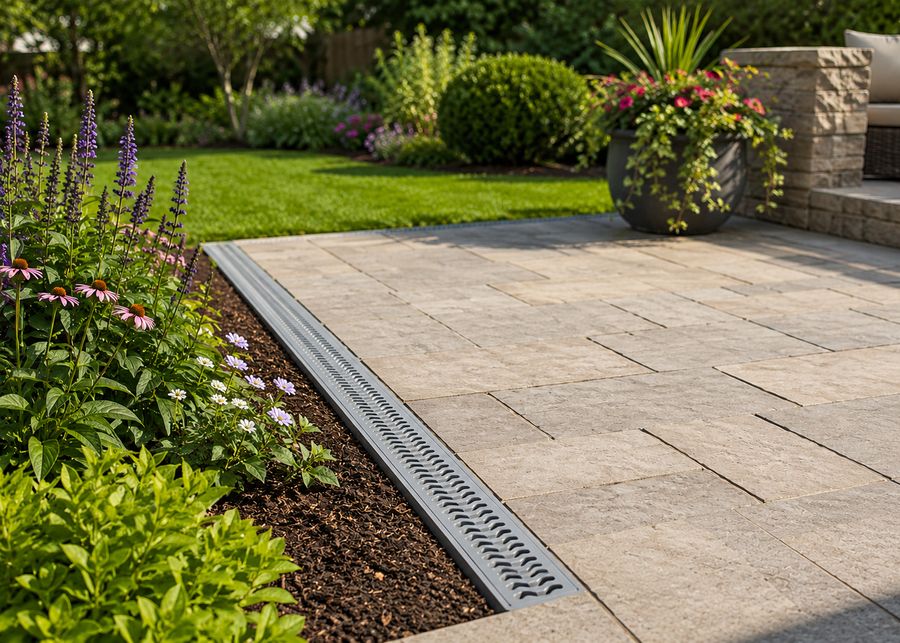

  • Gardens - Divert natural run off safely.

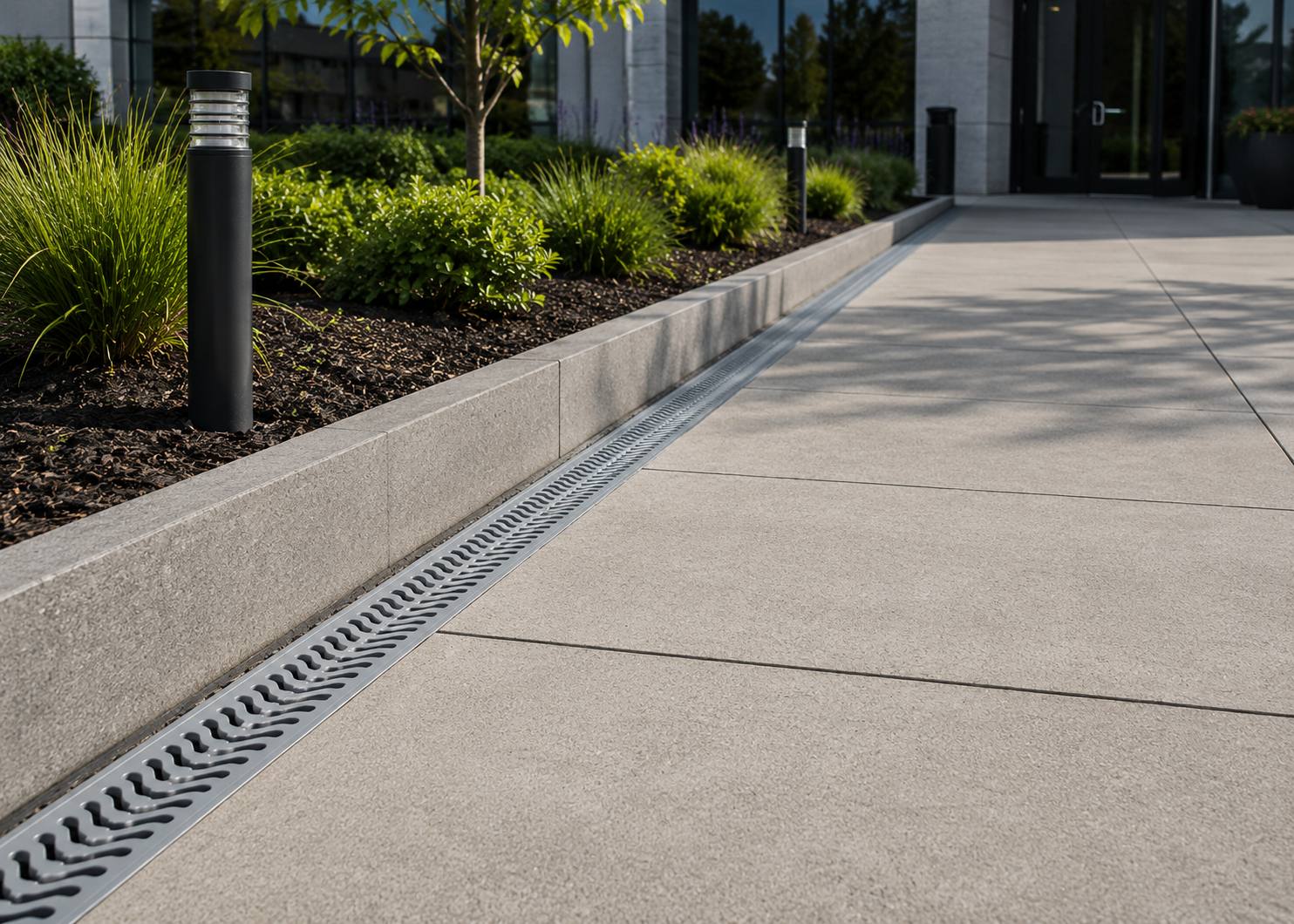

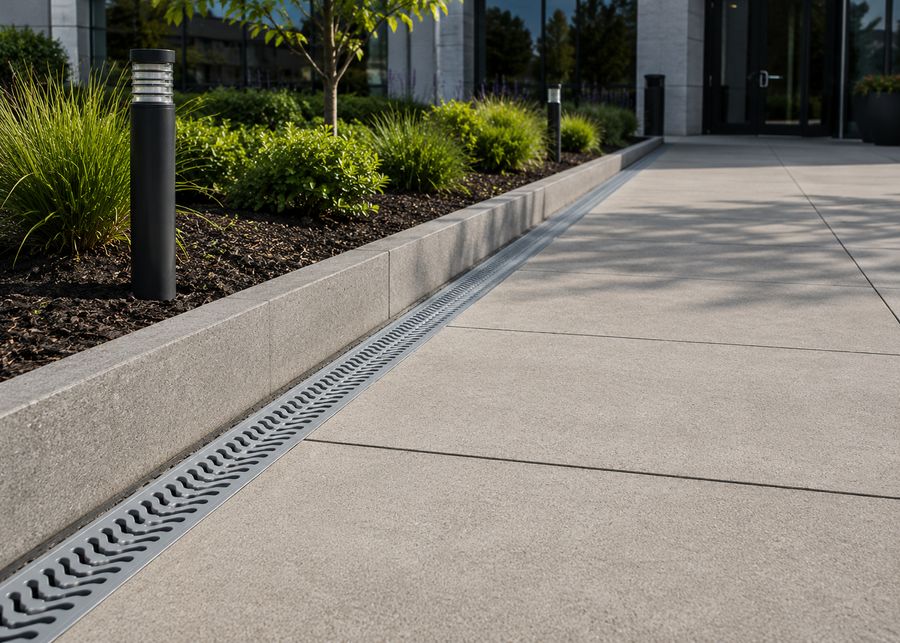

  • Walkways - Drains pooling water safely and conveniently.

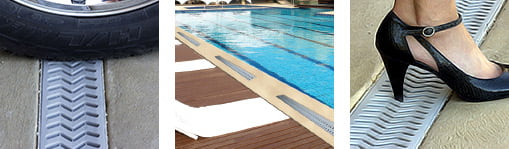

StormDrain Plus - Applications
StormDrain Plus - Easy Tool-less Installation

Simple Accessory Attachment

No clips or screws required to assemble.

The StormDrain Plus Quad, End Cap and End Outlet slide into the Channel's female ends and cut-to-length end while including tabs to fit into the male ends.

Specifications

  • All products are "UV" inhibited

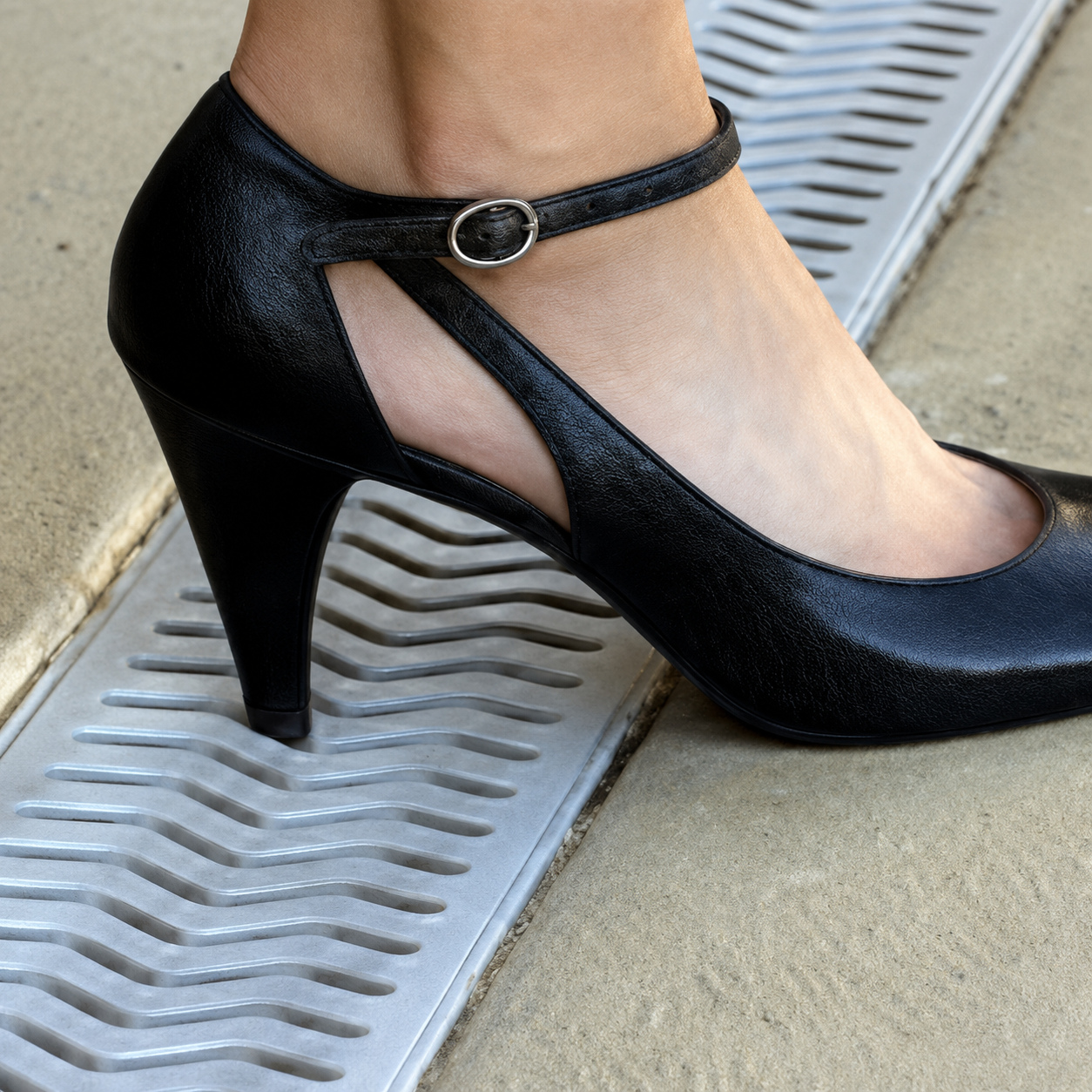

  • Grates are ADA and heel guard compliant
  • Grates have non-slip textured surface
  • 3 bottom outlets in every channel drain
  • No clips or screws required to assemble

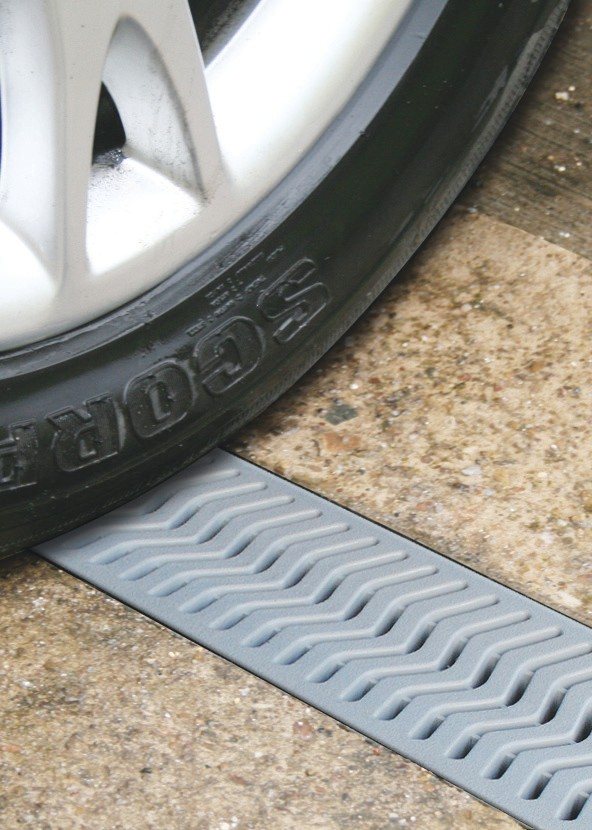

  • CLASS B: Loads of 61-175 psi.

    Recommended for medium-duty pneumatic tire traffic, autos and light trucks at speeds less than 20 mph.

StormDrain Plus Products

Part No. Description

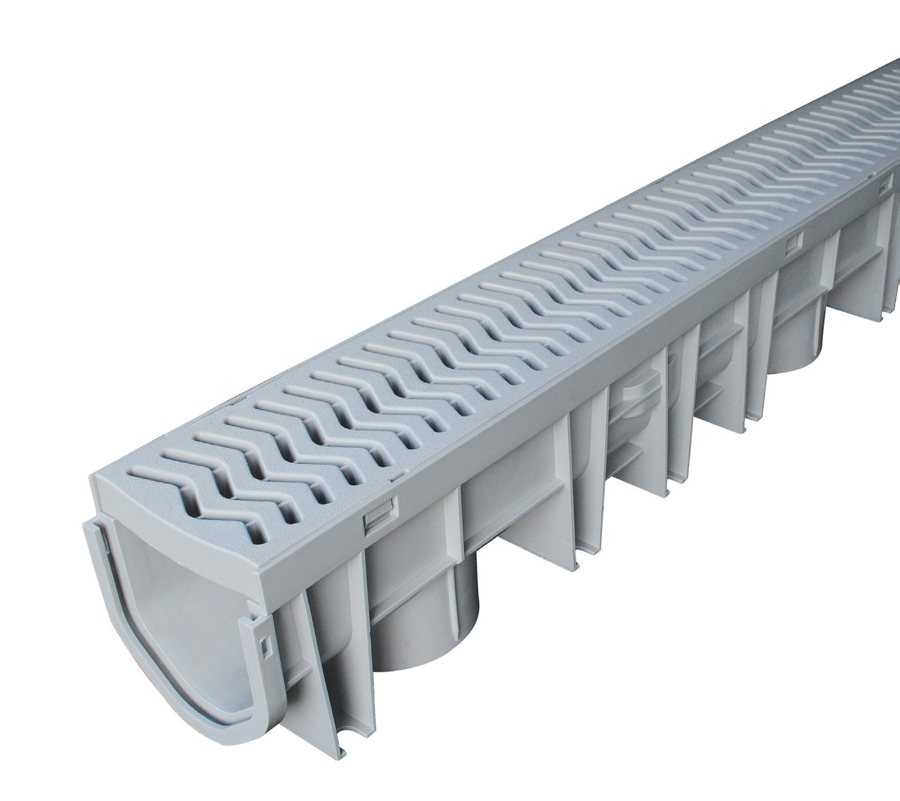

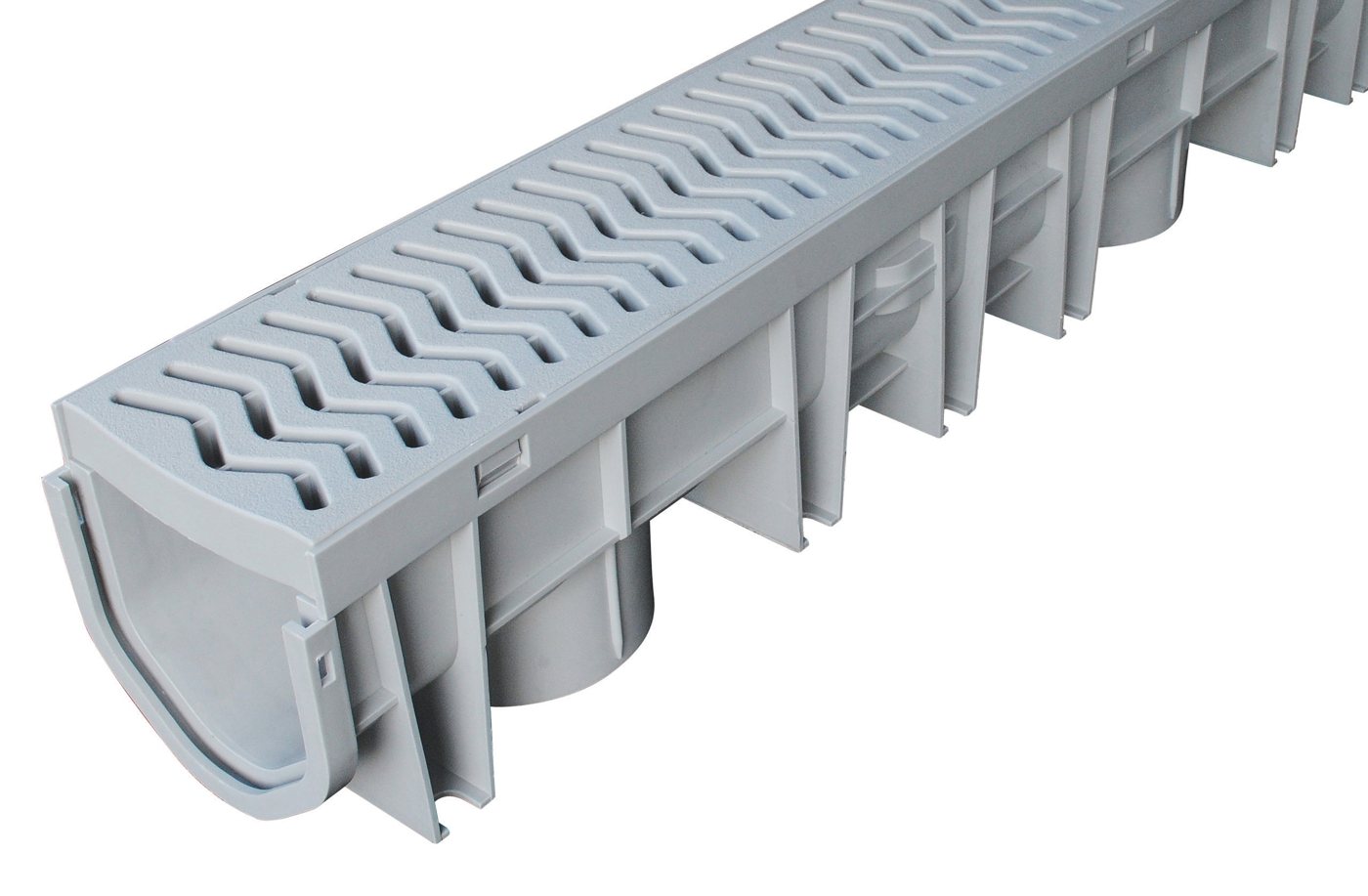

FSDP-CHGG 39.5" StormDrain Plus grey Channel with grate

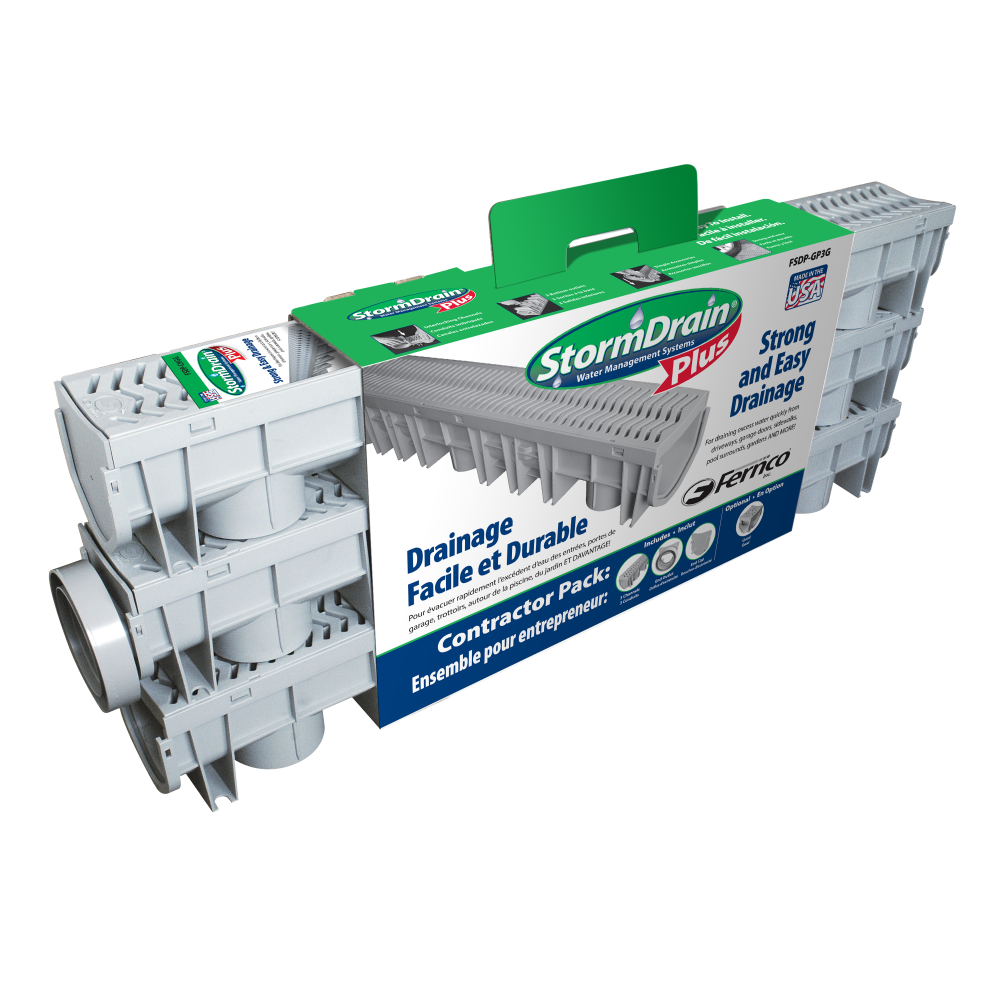

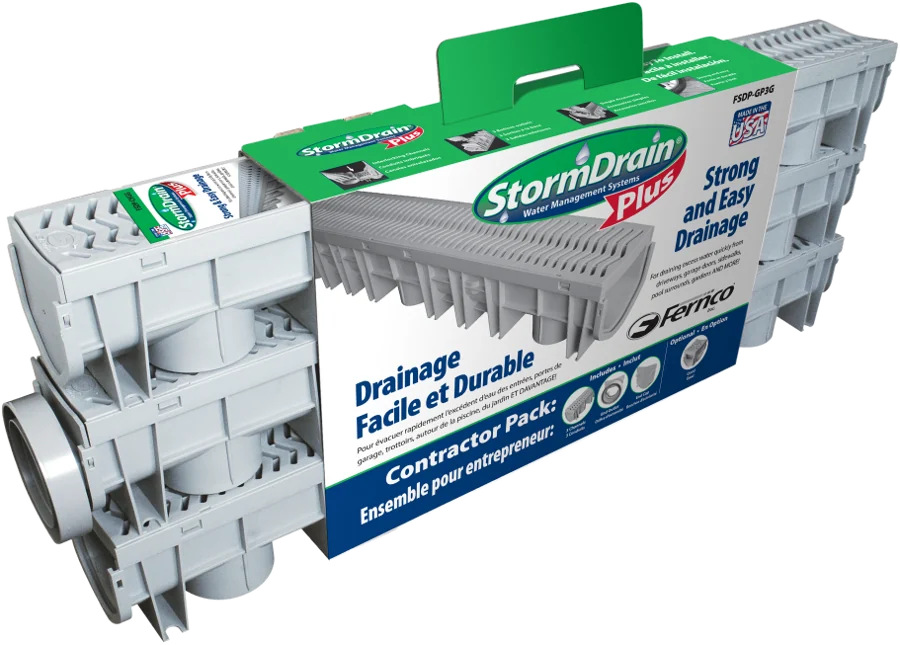

FSDP-GP3G StormDrain Plus Contractor Pack: 3 sticks of grey Channel with grate, 1 End Cap & 1 End Outlet
FSDP-QUAD StormDrain Plus Quad - 4-way connector
FSDP-EC StormDrain Plus End Cap
FSDP-EO StormDrain Plus End Outlet

Replacement Parts

Part No. Description
FSDP-CH StormDrain Plus Channel ONLY
FSDP-GG StormDrain Plus Grey Grate ONLY

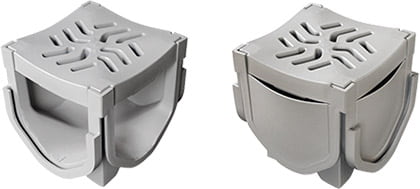

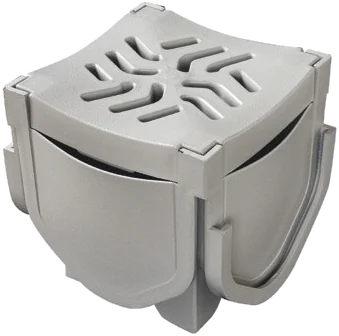

Quad - FSDP-QUAD

Quad - FSDP-QUAD

The Quad allows left or right hand extension of the StormDrain Plus or even T and X configurations. The required openings are easily cut out.

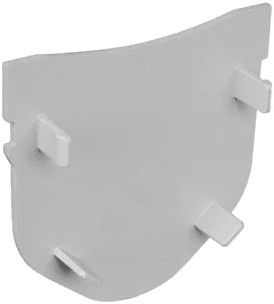

End Cap - FSDP-EC

End Cap - FSDP-EC

End Caps easily and securely slide into StormDrain Plus

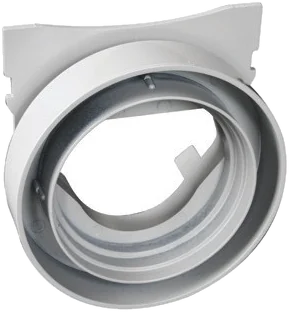

End Outlet - FSDP-EO

End Outlet - FSDP-EO

End Outlet accommodates 3" & 4" sewer and drain pipe OR 3" & 4" Sch. 40 fitting hub
